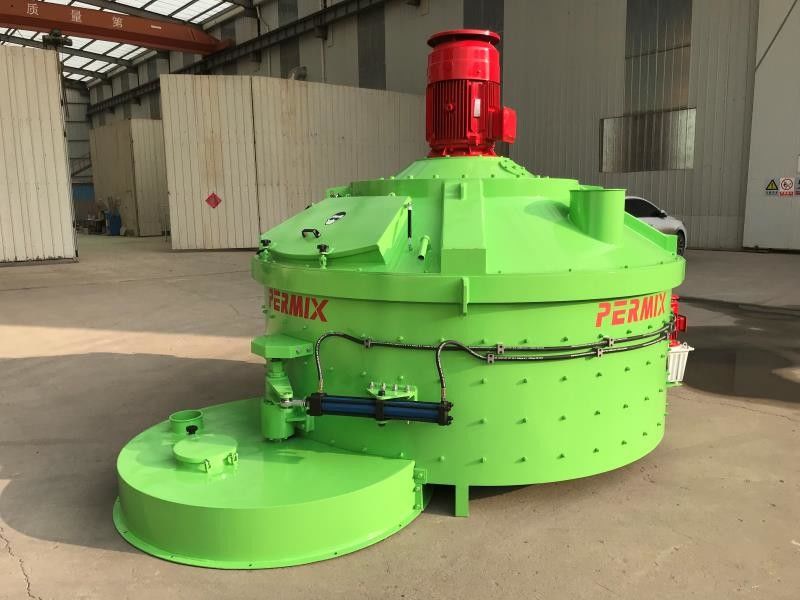

1875L Input Capacity Glass Raw Material Mixer Save Melting Energy Low Wear Short Mixing Time

1875L Input Capacity Glass Raw Material Mixer Save Melting Energy Low Wear Short Mixing Time

    • 1875L Input Capacity Glass Raw Material Mixer Save Melting Energy Low Wear Short Mixing Time
  • 1875L Input Capacity Glass Raw Material Mixer Save Melting Energy Low Wear Short Mixing Time

    Product Details:

    Place of Origin: JIAOZHOU CHINA
    Brand Name: PERMIX
    Certification: CE
    Model Number: PMC1250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Export Standard Package
    Delivery Time: 15-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 5-10 units per month
    Contact Now
    Detailed Product Description
    Product Name: Counter Current Planetary Mixer Input Capacity: 1875L
    Input Weight: 3000kgs Mixing Power: 30kw
    Output Capacity: 1250L Side Scraper QTY: 1
    High Light:

    vertical shaft concrete mixer

    ,

    counter current mixer

    PMC1250 Glass Raw Material Mixer Save Melting Energy Low Wear Short mixing time


    Mixer advantages


    The machine has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines.

    Users can use dump trucks and mixer trucks for their own use.

    The product design structure is reasonable, the layout is novel, and it is easy to use and maintain.

    It can also provide matching hosts for the mixing station.

    It is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges.

    At the same time, they can also be restructured according to the special requirements of users to meet their needs.

    Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants.



    Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.


    The mixing track as follows.

    1875L Input Capacity Glass Raw Material Mixer Save Melting Energy Low Wear Short Mixing Time 0



    Technical Specification
    ITEM/(PMC) PMC
    50
    PMC
    100
    PMC
    150
    PMC
    250
    PMC
    330
    PMC
    500
    PMC
    750
    PMC
    1000
    PMC
    1250
    PMC
    1500
    PMC
    2000
    PMC
    2500
    PMC
    3000
    PMC 4000
    Feeding Capacity (L) 75 150 225 375 500 750 1125 1500 1875 2250 3000 3750 4500 6000
    Output Capacity (L) 50 100 150 250 330 500 750 1000 1250 1500 2000 2500 3000 4000
    Feeding Weight (kg) 120 240 360 600 800 1200 1800 2400 3000 3600 4800 6000 7200 9600
    Mixing Power (kw) 3 5.5 7.5 11 15 18.5 30 37 45 55 75 90 110 132
    Discharging Power (kw) Pneumatic Discharge(Hydraulic Discharge Optional) 3 3 3 4 4 4 4
    Mixing Star*Blade 1*2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 2*2 3*2 3*3 3*3 3*3
    Side Scraper 1 1 1 1 1 1 1 1 1 1 1 1 1 1
    Discharge Scraper - - 1 1 1 1 1 1 1 1 2 2 2 2
    Weight (kg) 750 1000 1300 1500 2000 2400 3900 5500 6000 6500 9200 11000 12000 17500
    Lifting Power (kw) - - - 3 4 4 7.5 11 11 15 18.5 22 30 -
    Dimension (L*W*H) mm 950*
    790*
    1200
    1664*
    1453*
    1487
    1670*
    1460*
    1620
    1860*
    1650*
    1780
    1870*
    1870*
    1855
    2230*
    2080*
    1880
    2580*
    2340*
    2195
    2891*
    2602*
    2237
    3058*
    2756*
    2395
    3223*
    2902*
    2470
    3625*
    3230*
    2695
    3893*
    3550*
    2875
    3893*
    3550*
    3085
    4594*
    4150*
    3634


    1875L Input Capacity Glass Raw Material Mixer Save Melting Energy Low Wear Short Mixing Time 1
