| Place of Origin: | JIAOZHOU CHINA |
| Brand Name: | PERMIX |
| Certification: | CE |
| Model Number: | PMC100 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard Package |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5-10 units per month |

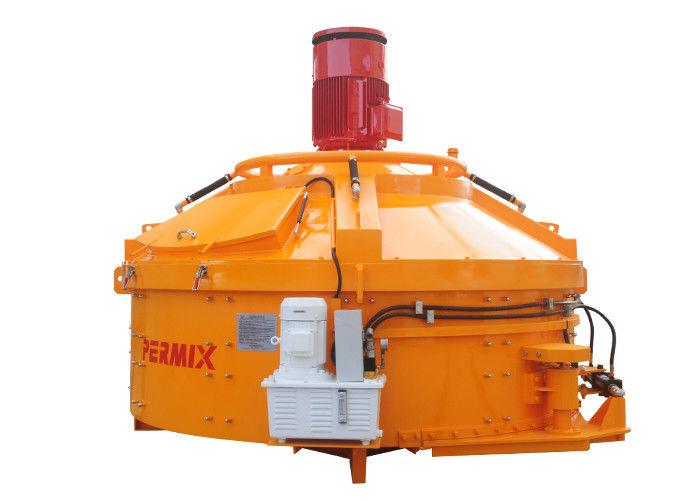

| Product Name: | Hydraulic Concrete Mixer | Input Capacity: | 150L |
|---|---|---|---|
| Input Weight: | 240kgs | Material: | Steel |
| Weight: | 1000kgs | Side Scraper QTY: | 1 |
| Highlight: | vertical shaft concrete mixer,counter current mixer |
||
Performance Characteristics:
High Homogenization
Low Energy Consumption
Simple StructureShort Mixing Time,
Simple and Convenient Maintenance
Compact Structure and Small Space required
Flexible Layout, 1-3 unloading doors are optional for different production lines.
Mixer advantages
Glass Raw Material Mixer is suitable for all kinds of small and medium,large prefabricated component plants and highways and bridges. At the same time, they can also be restructured according to the special requirements of users to meet their needs.Users can use dump trucks and mixer trucks for their own use.The machine hasthe simple concrete mixing plant combined with PLD series batching machines and the dual advantages of independent operation. Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. It can also provide matching hosts for the mixing station. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain.
APPLICATION INDUSTRIES
| Concrete | Other Construction Material | Refractory Material | Others |
| Ready-mixed concrete Precast concrete Foam concrete Color concrete Light concrete Shotcrete |
Dry mortar Wet mortar Gypsum Aggregate mixing Emulsified asphalt Cement adhesive |
Shaped refractory material Unshaped refractory material |
Glass Fertilizer Waste treatment Mine backfill |
| Technical Data | ||||||||||||||
| PMC50 | PMC 100 |
PMC 150 |
PMC 250 |
PMC 330 |
PMC 500 |
PMC 750 |
PMC 1000 |
PMC 1500 |
PMC 2000 |
PMC 2500 |
PMC 3000 |
PMC 4000 |
PMC 4500 |
|
| Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Input capacity(L) | 75 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | |
| Input capacity(kg) | 120 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | |
| Diameter of Mixing Tank(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | |||||
| Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
| Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
| Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 | |
