| Place of Origin: | JIAOZHOU CHINA |
| Brand Name: | PERMIX |
| Certification: | CE |
| Model Number: | PMC330 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard Package |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5-10 units per month |
| Input Capacity: | 500L | Input Weight: | 800kgs |
|---|---|---|---|
| Output Capacity: | 330L | Mixing Power: | 15kw |
| Blade QTY: | 1*2 | Color: | Orange |
| High Light: | vertical shaft concrete mixer,counter current mixer |
||

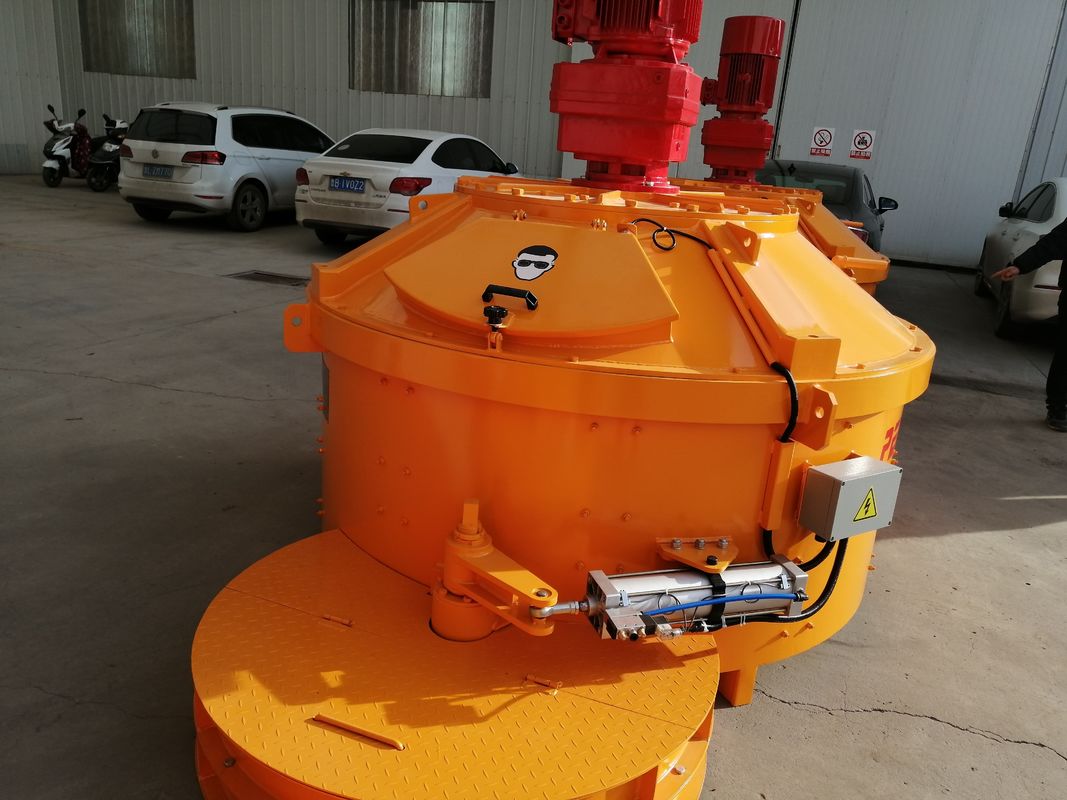

PMC330 Short Mixing Time Low energy consumption Flexible Layout wheeled mobile
Maintaining Door
The safety control device ensures that the mixer will not start during maintenance.
Large size maintaining door for easy maintenance and cleaning.
Transmission System
The gearbox unit specially designed for a balanced distributor of power to the various mixing device and realize rotation and revolution, ensuring a high efficiency and low noise rotation. The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender.
| Technical Specification | ||||||||||||||
| ITEM/(PMC) | PMC 50 |
PMC 100 |
PMC 150 |
PMC 250 |
PMC 330 |
PMC 500 |
PMC 750 |
PMC 1000 |
PMC 1250 |
PMC 1500 |
PMC 2000 |
PMC 2500 |
PMC 3000 |
PMC 4000 |
| Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
| Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
| Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 |
| Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
| Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
| Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
| Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
| Dimension (L*W*H) mm | 950* 790* 1200 |
1664* 1453* 1487 |
1670* 1460* 1620 |
1860* 1650* 1780 |
1870* 1870* 1855 |
2230* 2080* 1880 |
2580* 2340* 2195 |
2891* 2602* 2237 |
3058* 2756* 2395 |
3223* 2902* 2470 |
3625* 3230* 2695 |
3893* 3550* 2875 |
3893* 3550* 3085 |
4594* |
