MT100 Type Concrete Pan Mixer 100kg Mixing Capacity With 4 Scraper CE

MT100 Type Concrete Pan Mixer 100kg Mixing Capacity With 4 Scraper CE

MT100 Type Concrete Pan Mixer 100kg Mixing Capacity With 4 Scraper CE

Product Details:

Place of Origin: JIAOZHOU CHINA
Brand Name: PERMIX
Certification: CE
Model Number: mt100

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Export Standard Package
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 5-10 units per month
Contact Now
Detailed Product Description
Product Name: Pan Mixer Machine MT100 Concrete Batch Mixer Input Weight: 100kgs
Weight: 300kgs Bottom Scraper QTY: 1
Scraper: 4 Color: Red

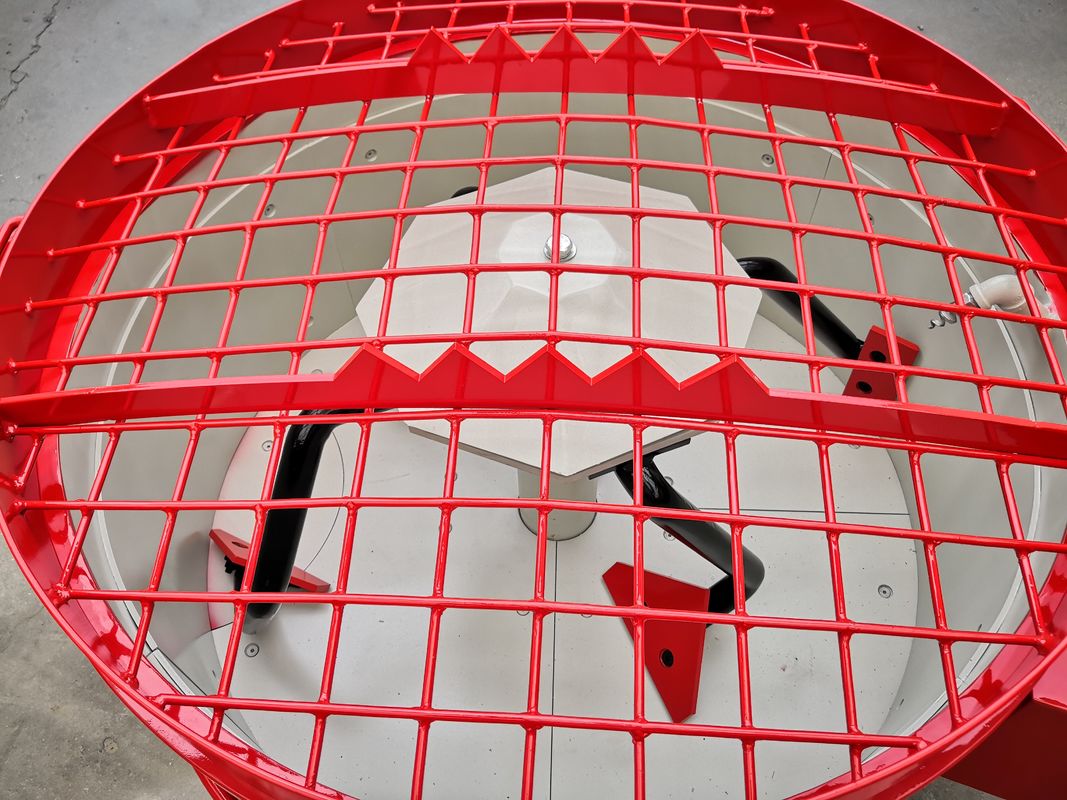

MT100 Type Concrete Pan Mixer 100kg Mixing Capacity with 4 Scraper

Product advantage and description



The Concrete Pan Mixer is the advanced and ideal model at home and abroad.Concrete Pan Mixerhas the advantages of high automation, good mixing quality, high efficiency,fast discharging speed, long service life of lining plate and blade, low energy consumption,low noise, convenient operation,convenient maintenance and so on. Concrete Pan Mixer is suitable for mixing plastic, dry, lightweight aggregate concrete and mortar and mortar.

Concrete mixer consists of feeding mechanism,water supply system,stirring mechanism, unloading mechanism,  electric control system and so on. The pneumatic piston push rod is used to discharge the motor automatically when discharging.  It can mix aggregate, gravel, gravel, dry concrete, plastic concrete, lightweight aggregate concrete and all kinds of mortar.The two horizontal mixing shafts in the mixing drum of the machine are stirred by reverse rotation at the same speed.





Operation Instruction



The instruction must be followed during operation

1. Discharge material in the trough after an emergency stops. Start with load is forbidden;

2. Do not run over loaded;

3. The anti-wear parts made by our company must be used to avoid any damage to the machine;

4. Stay away from the discharging area to avoid any injury to workers.

5. After each shift, check the tightness of nuts, clean the trough, tools, and open and close the discharging door Several times to ensure it works smoothly,

Check the blades and tiles weekly and replace them if necessary;







MT100 Type Concrete Pan Mixer 100kg Mixing Capacity With 4 Scraper CE







ITEM/MT MT100 MT250 MT500 MT800
Mixing Capacity /(kg) 100 250 500 800
Scraper/piece 4 5 5 5
Feeding Height/(mm) 1000 1150 1300 1350
Mixing Power/(kw) 4 5.5 11 15
Rated Power AC380v 50HZ AC380V 50HZ AC380V 50HZ AC380V 50HZ
Weight/(kg) 300 560 900 1200
Dimension/(L*W*H)/mm 1200*1000*1300 1500*1300*1400 1800*1600*1400 1800*2050*1300
