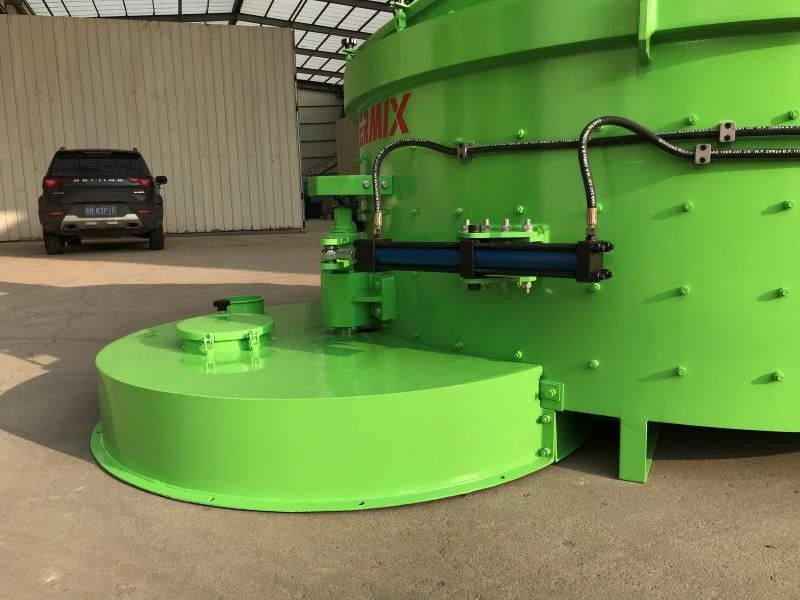

Green Color Glass Raw Material Mixer 2400kgs Input Weight Quick Mixing Speed

Green Color Glass Raw Material Mixer 2400kgs Input Weight Quick Mixing Speed

Green Color Glass Raw Material Mixer 2400kgs Input Weight Quick Mixing Speed

Product Details:

Place of Origin: JIAOZHOU CHINA
Brand Name: PERMIX
Certification: CE
Model Number: PMC1000

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Export Standard Package
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 5-10 units per month
Contact Now
Detailed Product Description
Product Name: Planetary Cement Mixer Input Weight: 2400kgs
Output Capacity: 1000L Mixing Power: 37kw
Bottom Scraper QTY: 1 Brand: PERMIX

PMC1000 Glass Raw Material Mixer 2400kgs Input Weight quick mixing speed



Short Mixing Time Planetary Concrete Mixer Wear - Resistant Alloy Plates PMC1000

Mixer advantages



The machine has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines.  Users can use dump trucks and mixer trucks for their own use.Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants.It can also provide matching hosts for the mixing station.





Product advantage and description



Glass Raw Material Mixer consists of feeding mechanism, water supply system, unloading mechanism, stirring mechanism, electric control system and so on. It can mix plastic concrete, dry concrete,gravel,aggregate, lightweight aggregate concrete and all kinds of mortar.The two horizontal mixing shafts in the mixing drum of the machine are stirred by reverse rotation at the same speed. The pneumatic piston push rod is used to discharge the motor automatically when discharging.

Glass Raw Material Mixer is the advanced and ideal model at home and abroad. It has the advantages of low noise, high automation, high efficiency,convenient operation,fast discharging speed,long service life of lining plate and blade, low energy consumption, good mixing quality, convenient maintenance and so on. It is suitable for mixing plastic, dry,mortar and lightweight aggregate concrete .



Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.

The mixing track as follows.





Green Color Glass Raw Material Mixer 2400kgs Input Weight Quick Mixing Speed





Technical Specification
ITEM/(PMC)

PMC
50

PMC
100

PMC
150

PMC
250

PMC
330

PMC
500

PMC
750

PMC
1000

PMC
1250

PMC
1500

PMC
2000

PMC
2500

PMC
3000

PMC 4000
Feeding Capacity (L)7515022537550075011251500187522503000375045006000
Output Capacity (L)501001502503305007501000125015002000250030004000
Feeding Weight (kg)120240360600800120018002400300036004800600072009600
Mixing Power (kw)35.57.5111518.5303745557590110132
Discharging Power (kw)Pneumatic Discharge(Hydraulic Discharge Optional)3334444
Mixing Star*Blade1*21*21*21*21*21*21*32*22*22*23*23*33*33*3
Side Scraper11111111111111
Discharge Scraper--111111112222
Weight (kg)7501000130015002000240039005500600065009200110001200017500
Lifting Power (kw)---3447.511111518.52230-
Dimension (L*W*H) mm

950*
790*
1200

1664*
1453*
1487

1670*
1460*
1620

1860*
1650*
1780

1870*
1870*
1855

2230*
2080*
1880

2580*
2340*
2195

2891*
2602*
2237

3058*
2756*
2395

3223*
2902*
2470

3625*
3230*
2695

3893*
3550*
2875

3893*
3550*
3085

4594*
4150*
3634
