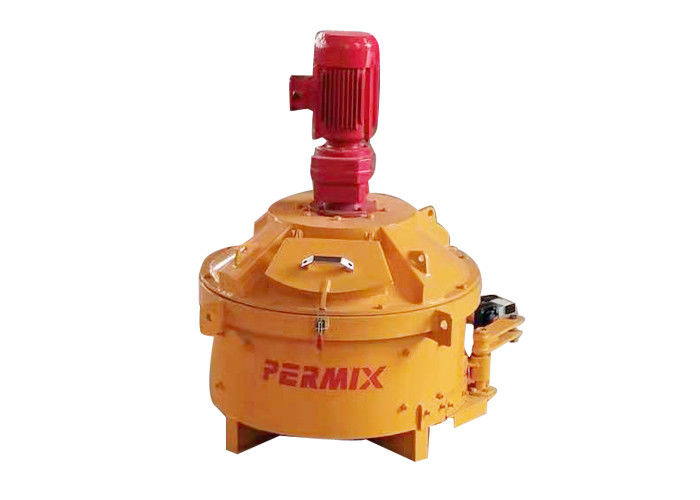

Short Mixing Time Vertical Shaft Concrete Mixer Simple Structure PMC100

Short Mixing Time Vertical Shaft Concrete Mixer Simple Structure PMC100

Short Mixing Time Vertical Shaft Concrete Mixer Simple Structure PMC100

Product Details:

Place of Origin: JIAOZHOU CHINA
Brand Name: PERMIX
Certification: CE
Model Number: PMC100

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Export Standard Package
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 5-10 units per month
Contact Now
Detailed Product Description
Product Name: Hydraulic Concrete Mixer Input Capacity: 150L
Input Weight: 240kgs Material: Steel
Weight: 1000kgs Side Scraper QTY: 1

Low Energy Consumption Vertical Shaft Concrete Mixer Short Mixing Time



Performance Characteristics:



Short Mixing Time, Simple Structure,

Low Energy Consumption

Simple and Convenient Maintenance

High Homogenization

Compact Structure and Small Space required

Flexible Layout, 1-3 unloading doors are optional for different production lines.



Mixer advantages



The machine hasthe simple concrete mixing plant combined with PLD series batching machines and the dual advantages of independent operation. Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. It can also provide matching hosts for the mixing station. It is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain. Users can use dump trucks and mixer trucks for their own use. At the same time, they can also be restructured according to the special requirements of users to meet their needs.



Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and

scraper tools on a specially designed drive system.



Technical Data
  PMC50 PMC
100
PMC
150
PMC
250
PMC
330
PMC
500
PMC
750
PMC
1000
PMC
1500
PMC
2000
PMC
2500
PMC
3000
PMC
4000
PMC
4500
Output capacity(L) 50 100 150 250 330 500 750 1000 1500 2000 2500 3000 4000 4500
Input capacity(L) 75   225 375 500 750 1125 1500 2250 3000 3750 4500 6000 6750
Input capacity(kg) 120   360 600 800 1200 1800 2400 3600 4800 6000 7200 9600 10800
Diameter of Mixing Tank(mm)       1300 1540 1900 2192 2496 2796 3100 3400 3400
Mixing Power kw 3 7.5 11 15 18.5 22 30 37 55 75 90 110 160 200
Blade QTY 1/2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 3*2 3/6 3/9 3/9 3/9
Side Scraper QTY 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Bottom Scraper QTY 1 1 1 1 1 1 1 1 1 1 2 2 2 2
Weight(kg) 700   1000 1200 1700 2000 3500 6000 7000 8500 10500 11000 16000 18000
