| Place of Origin: | JIAOZHOU CHINA |
| Brand Name: | PERMIX |
| Certification: | CE |
| Model Number: | PMC500 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard Package |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5-10 units per month |
| Product Name: | Counter Current Planetary Mixer | Input Capacity: | 750L |
|---|---|---|---|
| Output Capacity: | 500L | Input Weight: | 1200kgs |
| Mixing Power: | 18.5kw | Blade QTY: | 1*2 |
| Highlight: | portable concrete mixer,electric cement mixer |
||

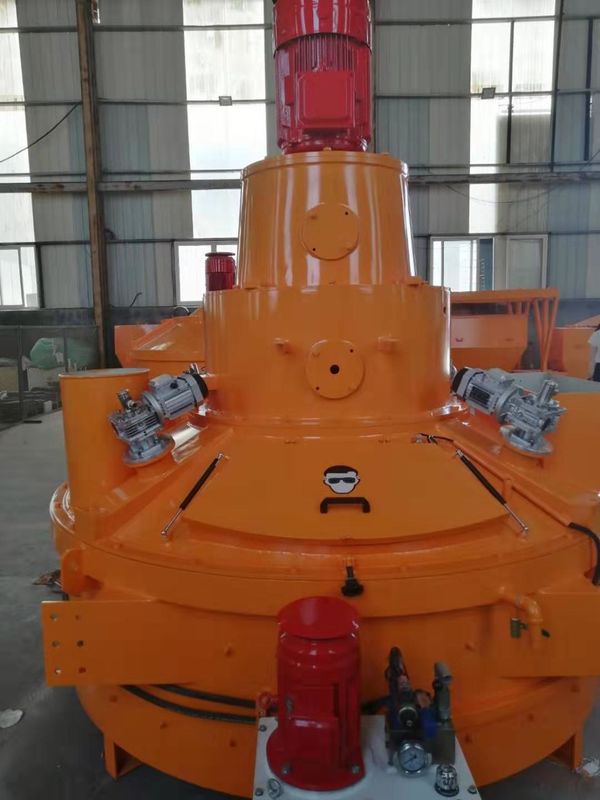

PMC500 Precast Concrete Planetary Mixer750L Input Capacity Short Mixing Time Flexible Layout
1. APPLICATION INDUSTRIES
1. Refractories: refractory bricks, unshaped refractories,
2. Ceramics,
3. Glass Raw Material,
4. Casting materials: Casting coatings, Sand mixing,
5. Pot Clay,
6. Concrete
Precast concrete: sleepers, track slabs, various block bricks, metro tunnel segments, PC components, PCCP water pipe,
Lightweight aggregate concrete: Light soil cement slurry, polyphenylene granule cement slurry, other lightweight aggregate concrete,
High Performance ready-mixed concrete: Self-leveling mortar, etc.
Others
2. Protection Against Wear
The materials and coatings used to manufacture those components that come into contact with abrasive substances are specially selected for each individual application.
(1) highchrome alloy.
(2) polyurethane material.
(3) stainless steel materials.
(4) surfacing materials.
(5) wear - resistant alloy plates.
(6) ceramic materials
(7) high wear resistant rubber and cast stone materials.
3.Transmission System
The gearbox unit specially designed for a balanced distributor of power to the various mixing device and realize rotation and revolution, ensuring a low noise rotation and high efficiency . The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender.
The mixing track is as follows.
| Technical Specification | ||||||||||||||
| ITEM/(PMC) |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC 4000 |
| Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
| Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
| Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 |
| Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
| Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
| Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
| Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
| Dimension (L*W*H) mm |
950* |
1664* |
1670* |
1860* |
1870* |
2230* |
2580* |
2891* |
3058* |
3223* |
3625* |
3893* |
3893* |
4594* |
