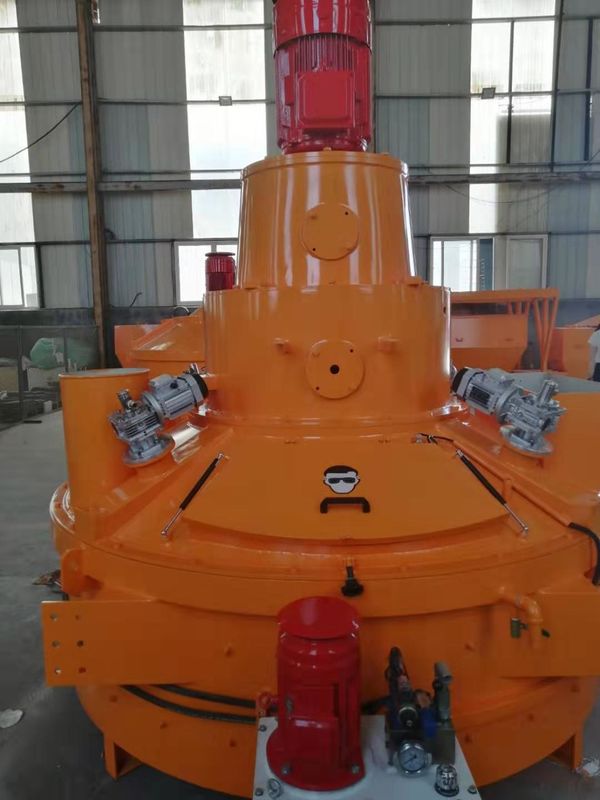

1200kgs Input Weight Electric Concrete Mixer PMC500 Concrete Mixer Machine

1200kgs Input Weight Electric Concrete Mixer PMC500 Concrete Mixer Machine

    • 1200kgs Input Weight Electric Concrete Mixer PMC500 Concrete Mixer Machine
  • 1200kgs Input Weight Electric Concrete Mixer PMC500 Concrete Mixer Machine

    Product Details:

    Place of Origin: JIAOZHOU CHINA
    Brand Name: PERMIX
    Certification: CE
    Model Number: PMC500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Export Standard Package
    Delivery Time: 15-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 5-10 units per month
    Contact Now
    Detailed Product Description
    Product Name: Counter Current Planetary Mixer Input Capacity: 750L
    Output Capacity: 500L Input Weight: 1200kgs
    Mixing Power: 18.5kw Blade QTY: 1*2
    High Light:

    commercial cement mixer

    ,

    concrete mixer

    Simple Structure PMC750 Counter Current Planetary Mixer No Hidden Corners



    1. Protection Against Wear



    The materials and coatings used to manufacture those components that come into contact with abrasive substances are specially selected for each individual application.



    (1) highchrome alloy.

    (2) ceramic materials

    (3) wear - resistant alloy plates.

    (4) surfacing materials.

    (5) stainless steel materials.

    (6) polyurethane material.

    (7) high wear resistant rubber and cast stone materials.



    2. APPLICATION INDUSTRIES



    1. Pot Clay,

    2. Ceramics,

    3. Glass Raw Material,

    4. Casting materials: Casting coatings, Sand mixing,

    5. Refractories: unshaped refractories,refractory bricks,

    6. Concrete

    Precast concrete:sleepers, metro tunnel segments, various block bricks, track slabs,PC components, PCCP water pipe,

    Lightweight aggregate concrete: Light soil cement slurry, polyphenylene granule cement slurry, other lightweight aggregate concrete,

    High Performance ready-mixed concrete: Self-leveling mortar, etc.

    Others





    3. Maintaining Door



    Large size maintaining door for easy maintenance and cleaning.The safety control device ensures that the mixer will not start during maintenance.



    4.Transmission System



    The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender.The gearbox unit specially designed for a balanced distributor of power to the various mixing device and realize rotation and revolution, ensuring a high efficiency and low noise rotation.



    Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.



    The mixing track as follows.



    1200kgs Input Weight Electric Concrete Mixer PMC500 Concrete Mixer Machine 0







    Technical Specification
    ITEM/(PMC)

    PMC

    50

    PMC

    100

    PMC

    150

    PMC

    250

    PMC

    330

    PMC

    500

    PMC

    750

    PMC

    1000

    PMC

    1250

    PMC

    1500

    PMC

    2000

    PMC

    2500

    PMC

    3000

    PMC 4000
    Feeding Capacity (L) 75 150 225 375 500 750 1125 1500 1875 2250 3000 3750 4500 6000
    Output Capacity (L) 50 100 150 250 330 500 750 1000 1250 1500 2000 2500 3000 4000
    Feeding Weight (kg) 120 240 360 600 800 1200 1800 2400 3000 3600 4800 6000 7200 9600
    Mixing Power (kw) 3 5.5 7.5 11 15 18.5 30 37 45 55 75 90 110 132
    Discharging Power (kw) Pneumatic Discharge(Hydraulic Discharge Optional) 3 3 3 4 4 4 4
    Mixing Star*Blade 1*2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 2*2 3*2 3*3 3*3 3*3
    Side Scraper 1 1 1 1 1 1 1 1 1 1 1 1 1 1
    Discharge Scraper - - 1 1 1 1 1 1 1 1 2 2 2 2
    Weight (kg) 750 1000 1300 1500 2000 2400 3900 5500 6000 6500 9200 11000 12000 17500
    Lifting Power (kw) - - - 3 4 4 7.5 11 11 15 18.5 22 30 -
    Dimension (L*W*H) mm

    950*

    790*

    1200

    1664*

    1453*

    1487

    1670*

    1460*

    1620

    1860*

    1650*

    1780

    1870*

    1870*

    1855

    2230*

    2080*

    1880

    2580*

    2340*

    2195

    2891*

    2602*

    2237

    3058*

    2756*

    2395

    3223*

    2902*

    2470

    3625*

    3230*

    2695

    3893*

    3550*

    2875

    3893*

    3550*

    3085

    4594*

    4150*

    3634







    1200kgs Input Weight Electric Concrete Mixer PMC500 Concrete Mixer Machine 1
