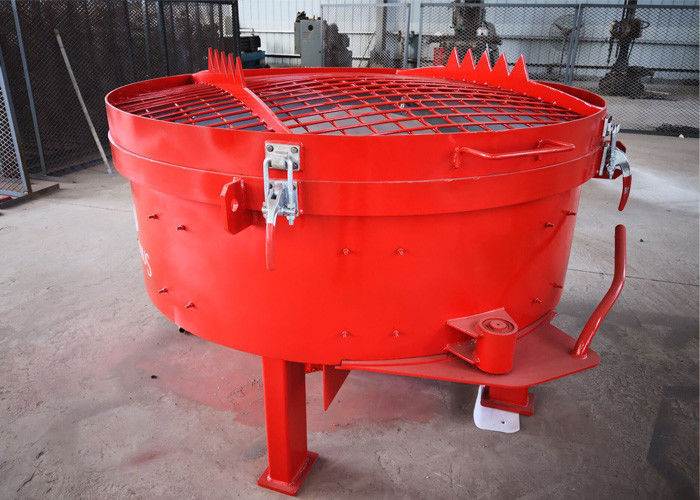

Refractory Portable Concrete Mixer Simple Structure AC 380v 50HZ

Refractory Portable Concrete Mixer Simple Structure AC 380v 50HZ

Refractory Portable Concrete Mixer Simple Structure AC 380v 50HZ

Product Details:

Place of Origin: JIAOZHOU CHINA
Brand Name: PERMIX
Certification: CE
Model Number: mt100

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Export Standard Package
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 5-10 units per month
Contact Now
Detailed Product Description
Product Name: Pan Mixer Machine MT100 Concrete Batch Mixer Input Weight: 100kgs
Weight: 300kgs Bottom Scraper QTY: 1
Scraper: 4 Color: Red
High Light:

pan type mixer

,

electric pan mixer

AC 380v 50HZ Refractory Mixer Machine / Pan Mixer Machine MT100 Type









Operation Instruction



The instruction must be followed during operation

1. Do not run over loaded;

2. Stay away from the discharging area to avoid any injury to workers.

3. Discharge material in the trough after an emergency stops. Start with load is forbidden;

4. The anti-wear parts made by our company must be used to avoid any damage to the machine;

5. Several times to ensure it works smoothly, Check the blades and tiles weekly and replace them if necessary; After each shift, check the tightness of nuts, clean the tools, trough, and open and close the discharging door.





Product advantage and description



Concrete mixer consists of feeding mechanism, stirring mechanism, unloading mechanism, water supply system, electric control system and so on.The pneumatic piston push rod is used to discharge the motor automatically when discharging. It can mix aggregate, plastic concrete,gravel, dry concrete, lightweight aggregate concrete and all kinds of mortar.The two horizontal mixing shafts in the mixing drum of the machine are stirred by reverse rotation at the same speed.



The concrete mixer is the advanced and ideal model at home and abroad. It has the advantages of high automation, high efficiency, good mixing quality, convenient operation, low noise, low energy consumption, fast discharging speed, long service life of lining plate and blade, convenient maintenance and so on. It is suitable for mixing plastic, dry, lightweight aggregate concrete and mortar and mortar.







Refractory Portable Concrete Mixer Simple Structure AC 380v 50HZ







ITEM/MT MT100 MT250 MT500 MT800
Mixing Capacity /(kg) 100 250 500 800
Scraper/piece 4 5 5 5
Feeding Height/(mm) 1000 1150 1300 1350
Mixing Power/(kw) 4 5.5 11 15
Rated Power AC380v 50HZ AC380V 50HZ AC380V 50HZ AC380V 50HZ
Weight/(kg) 300 560 900 1200
Dimension/(L*W*H)/mm 1200*1000*1300 1500*1300*1400 1800*1600*1400 1800*2050*1300
