| Place of Origin: | JIAOZHOU CHINA |
| Brand Name: | PERMIX |
| Certification: | CE |
| Model Number: | mt100 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard Package |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5-10 units per month |
| Product Name: | Pan Mixer Machine MT100 Concrete Batch Mixer | Input Weight: | 100kgs |
|---|---|---|---|
| Weight: | 300kgs | Bottom Scraper QTY: | 1 |
| Scraper: | 4 | Color: | Red |
| Highlight: | pan type concrete mixer,pan cement mixer |
||

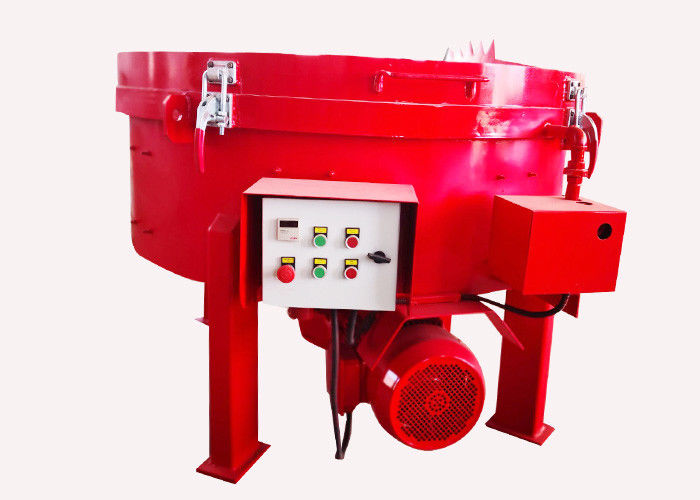

Refractory Mixer Machine / Pan Mixer Machine MT100
Long life simple maintenance
Operation Instruction
The instruction must be followed during operation
1. Discharge material in the trough after an emergency stops. Start with load is forbidden;
2. Do not run over loaded;
3. The anti-wear parts made by our company must be used to avoid any damage to the machine;
4. Stay away from the discharging area to avoid any injury to workers.
5. After each shift, check the tightness of nuts, clean the trough, tools, and open and close the discharging door Several times to ensure it works smoothly,
Check the blades and tiles weekly and replace them if necessary;
Product advantage and description
Concrete mixer consists of feeding mechanism, stirring mechanism, unloading mechanism, water supply system, electric control system and so on. The pneumatic piston push rod is used to discharge the motor automatically when discharging. It can mix aggregate, gravel, gravel, dry concrete, plastic concrete, lightweight aggregate concrete and all kinds of mortar.The two horizontal mixing shafts in the mixing drum of the machine are stirred by reverse rotation at the same speed.
The concrete mixer is the advanced and ideal model at home and abroad. It has the advantages of high automation, good mixing quality, high efficiency,low noise, convenient operation, low energy consumption,fast discharging speed, long service life of lining plate and blade, convenient maintenance and so on. It is suitable for mixing plastic, dry, lightweight aggregate concrete and mortar and mortar.
| ITEM/MT | MT100 | MT250 | MT500 | MT800 |
| Mixing Capacity /(kg) | 100 | 250 | 500 | 800 |
| Scraper/piece | 4 | 5 | 5 | 5 |
| Feeding Height/(mm) | 1000 | 1150 | 1300 | 1350 |
| Mixing Power/(kw) | 4 | 5.5 | 11 | 15 |
| Rated Power | AC380v 50HZ | AC380V 50HZ | AC380V 50HZ | AC380V 50HZ |
| Weight/(kg) | 300 | 560 | 900 | 1200 |
| Dimension/(L*W*H)/mm | 1200*1000*1300 | 1500*1300*1400 | 1800*1600*1400 | 1800*2050*1300 |
