| Place of Origin: | JIAOZHOU CHINA |
| Brand Name: | PERMIX |
| Certification: | CE |
| Model Number: | PMC1250 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard Package |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5-10 units per month |
| Product Name: | Counter Current Planetary Mixer | Input Capacity: | 1875L |
|---|---|---|---|
| Input Weight: | 3000kgs | Mixing Power: | 30kw |
| Output Capacity: | 1250L | Side Scraper QTY: | 1 |
| High Light: | concrete mixer,hydraulic concrete mixer |
||
1. APPLICATION INDUSTRIES
| Concrete | Other Construction Material | Refractory Material | Others |
| Ready-mixed concrete Precast concrete Foam concrete Color concrete Light concrete Shotcrete | Dry mortar Wet mortar Gypsum Aggregate mixing Emulsified asphalt Cement adhesive | Shaped refractory material Unshaped refractory material | Glass Fertilizer Waste treatment Mine backfill |
2. Mixer advantages
The machine has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. It can also provide matching hosts for the mixing station. It is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges. Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain. Users can use dump trucks and mixer trucks for their own use. At the same time, they can also be restructured according to the special requirements of users to meet their needs.
3. The Skip Hopper
Skip hopper can be chosen according to the requirements of customers. The feeding door automatically opens when feeding, and closes when the hopper begins to descend. The device effectively prevents the dust overflow the trough during the mixing to protect the environment.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.
The mixing track as follows.
| Technical Specification | ||||||||||||||
| ITEM/(PMC) | PMC 50 | PMC 100 | PMC 150 | PMC 250 | PMC 330 | PMC 500 | PMC 750 | PMC 1000 | PMC 1250 | PMC 1500 | PMC 2000 | PMC 2500 | PMC 3000 | PMC 4000 |
| Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
| Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
| Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 |

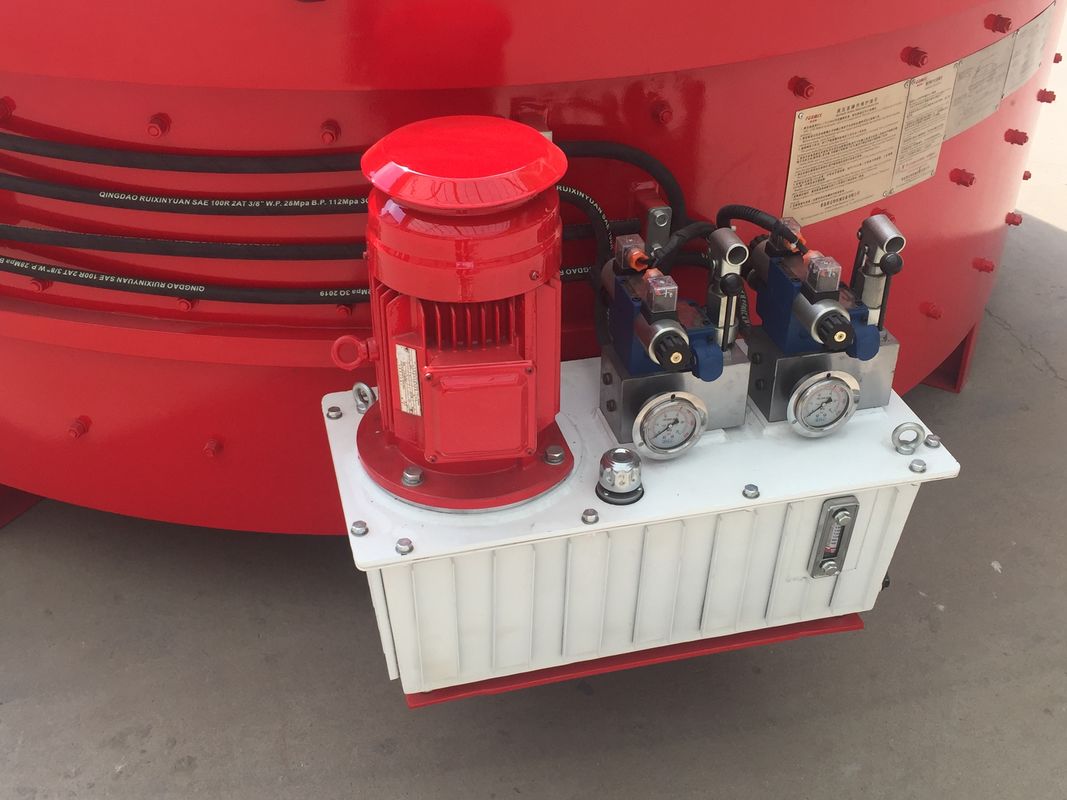

| Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
| Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
| Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
| Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
| Dimension (L*W*H) mm | 950* 790* 1200 | 1664* 1453* 1487 | 1670* 1460* 1620 | 1860* 1650* 1780 | 1870* 1870* 1855 | 2230* 2080* 1880 | 2580* 2340* 2195 | 2891* 2602* 2237 | 3058* 2756* 2395 | 3223* 2902* 2470 | 3625* 3230* 2695 | 3893* 3550* 2875 | 3893* 3550* 3085 | 4594* 4150* 3634 |
