|Place of Origin:||JIAOZHOU CHINA|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||Export Standard Package|
|Delivery Time:||15-20 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||5-10 units per month|
|Weight:||9200kgs||Bottom Scraper QTY:||3|
|Side Scraper QTY:||1||Color:||Orange|
portable concrete mixer,
electric cement mixer

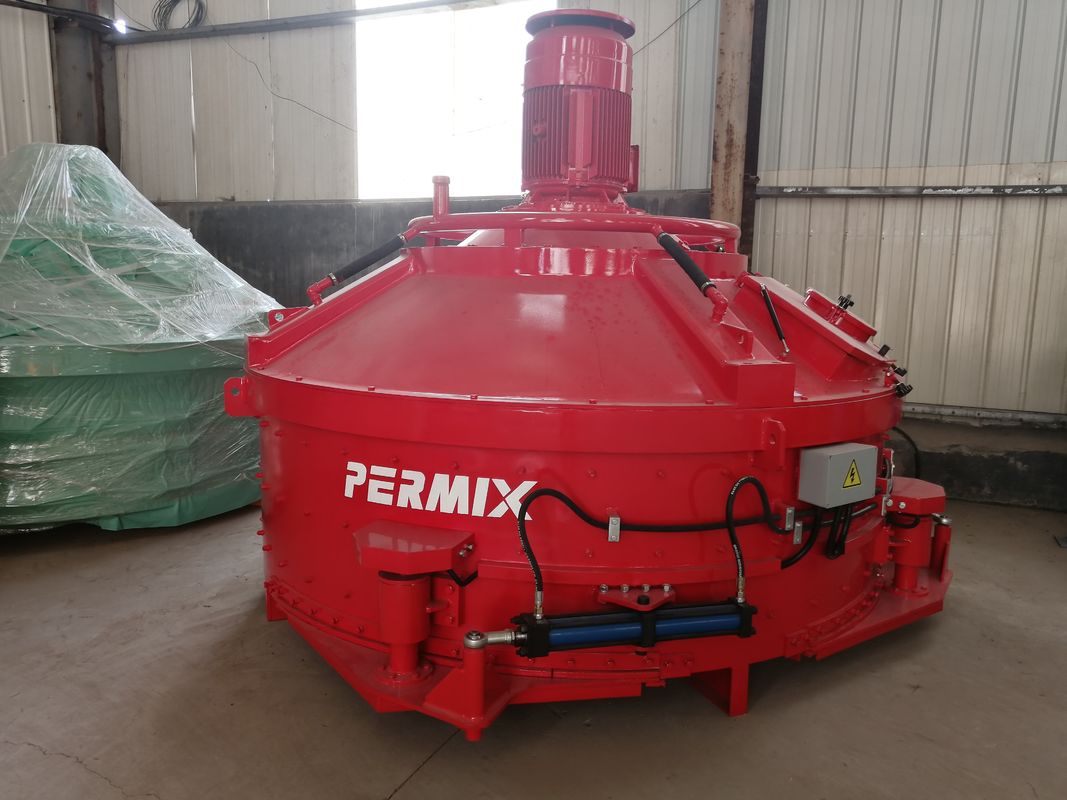

PMC2000 Precast Concrete Planetary Mixer Low energy consumption
Product advantage and description
Precast Concrete Planetary Mixer is advanced at home and abroad, the ideal model, and has a high degree of automation, high efficiency, low noise, fast discharging, convenient maintenance,low energy consumption, mixing of good quality, easy operation, long service life of lining and blade. Applicable to ductility, plasticity and lightweight aggregate concrete and various mortar mixing. In this mchine, the two horizontal mixing shafts are mixed with the reverse equal-speed rotation, which can be realized the maneuvering discharge through the pneumatic piston push rod. Precast Concrete Planetary Mixer consists of feeding mechanism, discharging mechanism, electric control system, mixing mechanism, water supply system, etc. Plasticity, briquettability concrete, ductility and all kinds of mortar can be mixed.
Features of Planetary mixer
Planetary mixer is a new type of high efficiency, stirring without dead corner equipment; it has a unique form of stirring.Mixer has good deaeration effect, the cylinder body can be designed to be heated or cooled according to customers' needs. Planet drive the two stirring shaft turns around the material barrel, at the same time, the stirring shaft is high-speed operation, so that the material is strong shearing action, achieve full dispersion and mixing effect. Cylinder with special seal structure and have the pressure or vacuum stirring. The cover is hydraulic lifting, convenient to operate and clean and the cylinder body can move freely.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.
The mixing track as follows.
|Feeding Capacity (L)||75||150||225||375||500||750||1125||1500||1875||2250||3000||3750||4500||6000|
|Output Capacity (L)||50||100||150||250||330||500||750||1000||1250||1500||2000||2500||3000||4000|
|Feeding Weight (kg)||120||240||360||600||800||1200||1800||2400||3000||3600||4800||6000||7200||9600|
|Mixing Power (kw)||3||5.5||7.5||11||15||18.5||30||37||45||55||75||90||110||160|
|Discharging Power (kw)||Pneumatic Discharge(Hydraulic Discharge Optional)||3||3||3||4||4||4||4|
|Lifting Power (kw)||-||-||-||3||4||4||7.5||11||11||15||18.5||22||30||-|
|Dimension (L*W*H) mm||950*
