| Place of Origin: | JIAOZHOU CHINA |
| Brand Name: | PERMIX |
| Certification: | CE |
| Model Number: | PMC50 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard Package |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5-10 units per month |
| Material: | Steel | Input Capacity: | 75L |
|---|---|---|---|
| Side Scraper QTY: | 1 | Color: | Orange |
| Weight: | 750kgs | Bottom Scraper QTY: | 1 |
| High Light: | concrete mixer machine,cement concrete mixer machine |
||

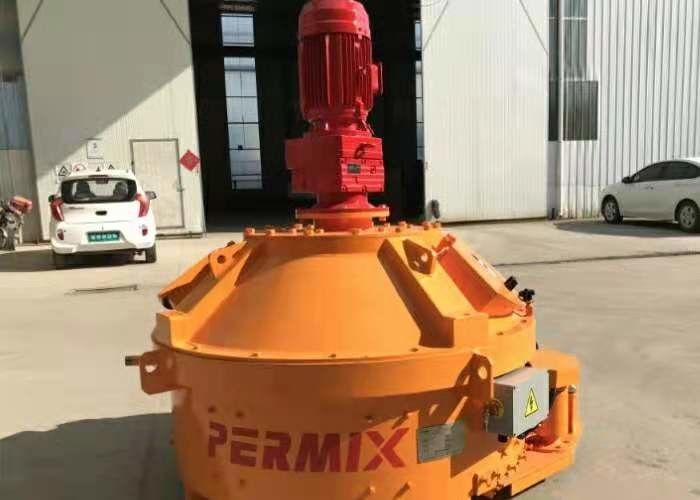

PMC50 Automatic Planetary Mixer Simple structure with 1-3 Unloading Doors
High Homogenization Of Mixing Counter Current Mnloading Doot advantage and description
Concrete mixer is advanced at home and abroad, the ideal model, and has a high degree of automation, low energy consumption,high efficiency, low noise, fast discharging, mixing of good quality, easy operation,convenient maintenance,long service life of lining and blade. Applicable to plasticity, ductility, and lightweight aggregate concrete and various mortar mixing.Concrete mixer consists of feeding mechanism, mixing mechanism, discharging mechanism, electric control system, water supply system, etc. Plasticity, ductility, briquettability concrete and all kinds of mortar can be mixed. In this machine, the two horizontal mixing shafts are mixed with the reverse equal-speed rotation, which can be realized the maneuvering discharge through the pneumatic piston push rod.
| Technical Specification | ||||||||||||||
| ITEM/(PMC) |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC |
PMC 4000 |
| Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
| Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
| Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 160 |
| Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
| Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
| Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
| Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
| Dimension (L*W*H) mm |
950* |
1664* |
1670* |
1860* |
1870* |
2230* |
2580* |
2891* |
3058* |
3223* |
3625* |
3893* |
3893* |
4594* |
