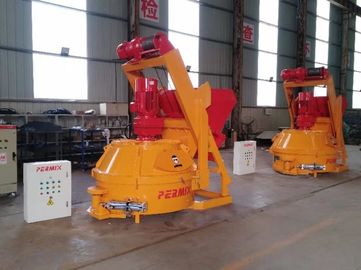

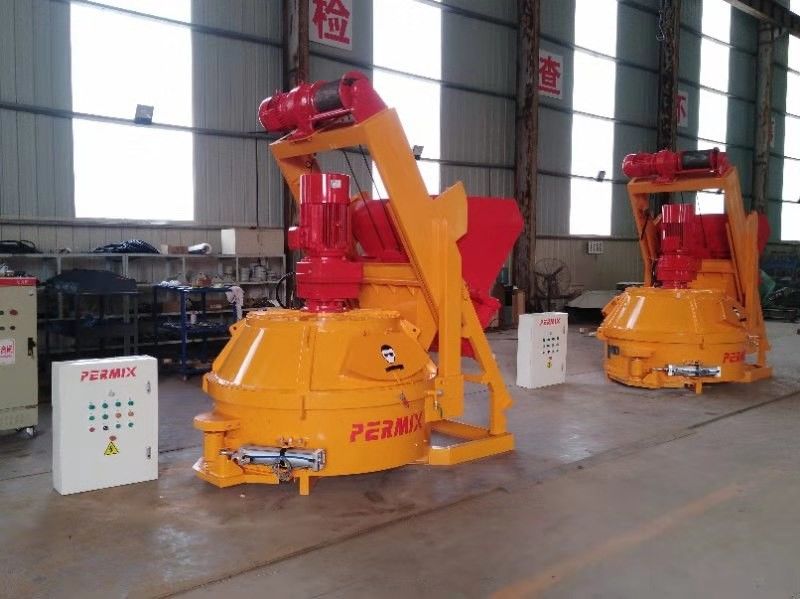

Simple Operation Refractory Mixer Machine Large Capacity For Construction

Simple Operation Refractory Mixer Machine Large Capacity For Construction

  • Simple Operation Refractory Mixer Machine Large Capacity For Construction
Simple Operation Refractory Mixer Machine Large Capacity For Construction
Product Details:
Place of Origin: JIAOZHOU CHINA
Brand Name: PERMIX
Certification: CE
Model Number: PMC1250
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Export Standard Package
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 5-10 units per month
Contact Now
Detailed Product Description
Product Name: Counter Current Planetary Mixer Input Capacity: 1875L
Input Weight: 3000kgs Mixing Power: 30kw
Output Capacity: 1250L Side Scraper QTY: 1
High Light:

refractory mixer machine

,

refractory castable mixer machine

PMC1250 Refractory Planetary Mixer Large Capacity convenient maintenance



1. APPLICATION INDUSTRIES
1. Concrete
Precast concrete: sleepers, track slabs, metro tunnel segments, various block bricks, PC components, PCCP water pipe,
Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,
High Performance ready-mixed concrete: Self-leveling mortar, etc.
2. Ceramics,
3. Casting materials: Sand mixing, casting coatings,
4. Glass Raw Material,
5. Pot Clay,
6. Refractories: Unshaped refractories, Refractory bricks,
Others



2. The Skip Hopper



The device effectively prevents the dust overflow the trough during the mixing to protect the environment.

Skip hopper can be chosen according to the requirements of customers. The feeding door automatically opens when feeding, and closes when the hopper begins to descend.



3. Mixer advantages


The machine has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. Refractory Planetary Mixer can also provide matching hosts for the mixing station. Refractory Planetary Mixer is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges. Users can use dump trucks and mixer trucks for their own use. Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain. At the same time, they can also be restructured according to the special requirements of users to meet their needs.



Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.
The mixing track as follows.


Simple Operation Refractory Mixer Machine Large Capacity For Construction 0





Technical Specification
ITEM/(PMC) PMC
50
PMC
100
PMC
150
PMC
250
PMC
330
PMC
500
PMC
750
PMC
1000
PMC
1250
PMC
1500
PMC
2000
PMC
2500
PMC
3000
PMC 4000
Feeding Capacity (L) 75 150 225 375 500 750 1125 1500 1875 2250 3000 3750 4500 6000
Output Capacity (L) 50 100 150 250 330 500 750 1000 1250 1500 2000 2500 3000 4000
Feeding Weight (kg) 120 240 360 600 800 1200 1800 2400 3000 3600 4800 6000 7200 9600
Mixing Power (kw) 3 5.5 7.5 11 15 18.5 30 37 45 55 75 90 110 132
Discharging Power (kw) Pneumatic Discharge(Hydraulic Discharge Optional) 3 3 3 4 4 4 4
Mixing Star*Blade 1*2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 2*2 3*2 3*3 3*3 3*3
Side Scraper 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Discharge Scraper - - 1 1 1 1 1 1 1 1 2 2 2 2
Weight (kg) 750 1000 1300 1500 2000 2400 3900 5500 6000 6500 9200 11000 12000 17500
Lifting Power (kw) - - - 3 4 4 7.5 11 11 15 18.5 22 30 -
Dimension (L*W*H) mm 950*
790*
1200
1664*
1453*
1487
1670*
1460*
1620
1860*
1650*
1780
1870*
1870*
1855
2230*
2080*
1880
2580*
2340*
2195
2891*
2602*
2237
3058*
2756*
2395
3223*
2902*
2470
3625*
3230*
2695
3893*
3550*
2875
3893*
3550*
3085
4594*
4150*
3634




Simple Operation Refractory Mixer Machine Large Capacity For Construction 1
