| Place of Origin: | JIAOZHOU CHINA |
| Brand Name: | PERMIX |
| Certification: | CE |
| Model Number: | PMC330 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard Package |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5-10 units per month |
| Input Capacity: | 500L | Input Weight: | 800kgs |
|---|---|---|---|
| Output Capacity: | 330L | Mixing Power: | 15kw |
| Blade QTY: | 1*2 | Color: | Orange |
| High Light: | portable concrete mixer,electric cement mixer |
||

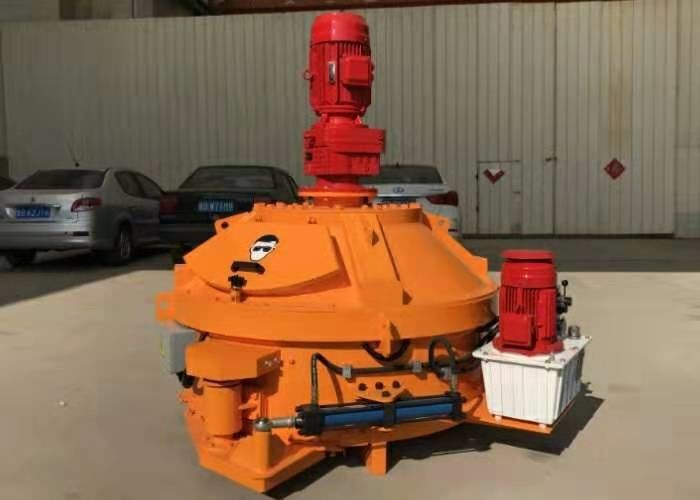

PMC330 Precast Concrete Planetary Mixer Low energy consumption
Wear - Resistant Alloy Plates Planetary Concrete Mixer Stainless Steel Materials
Transmission System
The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender. The gearbox unit specially designed for a balanced distributor of power to the various mixing device and realize rotation and revolution, ensuring a high efficiency and low noise rotation.
The use of mixer
1. Before use, the machine should have an empty test. Before the test machine, the firmness of all the connecting parts of the machine table shall be checked first, especially if the bearing part is loose during transportation. Close the main switch, access the power supply, run the empty test machine.
2. Empty machine test. The mixer can only be put into production without abnormal sound, high heat of bearing gear, etc.
3. If abnormal vibrations or strange sounds are detected during use, stop the mixer and give a thorough inspection.
4. The load should not be too large. It is generally measured by the load of the motor. The load current of the 380V motor when stirring the material should not exceed 6 amps. If it exceeds the load, the stirring capacity should be reduced immediately.
5. Managers should be familiar with the technical performance, control structure, internal structure, and operating principle of the mixer. Do not leave the workplace during operation to prevent malfunctions and damage to mechanical parts, so as to ensure safe production.
Stainless Steel Materials Stationary Concrete Mixer For Metro Tunnel Segments.
| Technical Specification | ||||||||||||||
| ITEM/(PMC) | PMC 50 |
PMC 100 |
PMC 150 |
PMC 250 |
PMC 330 |
PMC 500 |
PMC 750 |
PMC 1000 |
PMC 1250 |
PMC 1500 |
PMC 2000 |
PMC 2500 |
PMC 3000 |
PMC 4000 |
| Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
| Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
| Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 |
| Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
| Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
| Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
| Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
| Dimension (L*W*H) mm | 950* 790* 1200 |
1664* 1453* 1487 |
1670* 1460* 1620 |
1860* 1650* 1780 |
1870* 1870* 1855 |
2230* 2080* 1880 |
2580* 2340* 2195 |
2891* 2602* 2237 |
3058* 2756* 2395 |
3223* 2902* 2470 |
3625* 3230* 2695 |
3893* 3550* 2875 |
3893* 3550* 3085 |
4594* |
