|Place of Origin:||JIAOZHOU CHINA|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||Export Standard Package|
|Delivery Time:||15-20 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||5-10 units per month|
|Side Scraper QTY:||1||Color:||Orange|
|Weight:||750kgs||Bottom Scraper QTY:||1|
hydraulic concrete mixer
High Homogenization Of Mixing Counter Current Mnloading Doot advantage and description
In this mchine, the two horizontal mixing shafts are mixed with the reverse equal-speed rotation, which can be realized the maneuvering discharge through the pneumatic piston push rod.
Plasticity, briquettability concrete ,ductility, and all kinds of mortar can be mixed.
Concrete mixer is advanced at home and abroad, the ideal model, and has a high degree of automation, low energy consumption, low noise, mixing of good quality, fast discharging, long service life of lining and blade, high efficiency, easy operation, convenient maintenance. Applicable to plasticity, ductility, and lightweight aggregate concrete and various mortar mixing.Concrete mixer consists of feeding mechanism, mixing mechanism,water supply system, discharging mechanism, electric control system, etc.

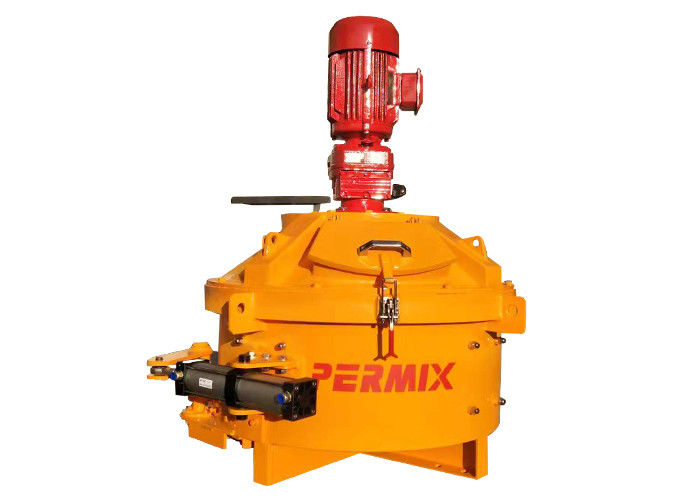

Features of Planetary mixer
Planetary mixer is a new type of high efficiency, stirring without dead corner equipment; it has a unique form of stirring. Planet drive the two stirring shaft turns around the material barrel, at the same time, the stirring shaft is high-speed operation, so that the material is strong shearing action, achieve full dispersion and mixing effect. Cylinder with special seal structure and have the pressure or vacuum stirring. Mixer has good deaeration effect, the cylinder body can be designed to be heated or cooled according to customers' needs. In addition to the equipment within the knife scraping wall around the cylinder axis rotation, will be stuck on the wall material scraping and then put them into mixing shear, that make no residual material in the mixer and mixing effect is more ideal.The cover is hydraulic lifting, convenient to operate and clean and the cylinder body can move freely.
|Feeding Capacity (L)||75||150||225||375||500||750||1125||1500||1875||2250||3000||3750||4500||6000|
|Output Capacity (L)||50||100||150||250||330||500||750||1000||1250||1500||2000||2500||3000||4000|
|Feeding Weight (kg)||120||240||360||600||800||1200||1800||2400||3000||3600||4800||6000||7200||9600|
|Mixing Power (kw)||3||5.5||7.5||11||15||18.5||30||37||45||55||75||90||110||160|
|Discharging Power (kw)||Pneumatic Discharge(Hydraulic Discharge Optional)||3||3||3||4||4||4||4|
|Lifting Power (kw)||-||-||-||3||4||4||7.5||11||11||15||18.5||22||30||-|
|Dimension (L*W*H) mm|
