| Place of Origin: | JIAOZHOU CHINA |
| Brand Name: | PERMIX |
| Certification: | CE |
| Model Number: | PMC3000 |
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard Package |
| Delivery Time: | 15-20 days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5-10 units per month |
| Material: | Steel | Input Capacity: | 4500L |
|---|---|---|---|
| Side Scraper QTY: | 1 | Color: | Orange |
| Weight: | 12000kgs | Bottom Scraper QTY: | 1 |
| High Light: | concrete mixer,hydraulic concrete mixer |
||
High Homogenization Of Mixing Counter Current Mixer 1-3 Unloading Doors PMC3000
Features of Planetary mixer
Planetary mixer is a new type of high efficiency, stirring without dead corner equipment; it has a unique form of stirring. The cover is hydraulic lifting, convenient to operate and clean and the cylinder body can move freely.Cylinder with special seal structure and have the pressure or vacuum stirring. Mixer has good deaeration effect, the cylinder body can be designed to be heated or cooled according to customers' needs. Planet drive the two stirring shaft turns around the material barrel, at the same time, the stirring shaft is high-speed operation, so that the material is strong shearing action, achieve full dispersion and mixing effect. In addition to the equipment within the knife scraping wall around the cylinder axis rotation, will be stuck on the wall material scraping and then put them into mixing shear, that make no residual material in the mixer and mixing effect is more ideal.
Product advantage and description
In this mchine, the two horizontal mixing shafts are mixed with the reverse equal-speed rotation, which can be realized the maneuvering discharge through the pneumatic piston push rod. Plasticity, ductility, briquettability concrete and all kinds of mortar can be mixed.
Concrete mixer consists of feeding mechanism, mixing mechanism, discharging mechanism, water supply system, electric control system, etc.

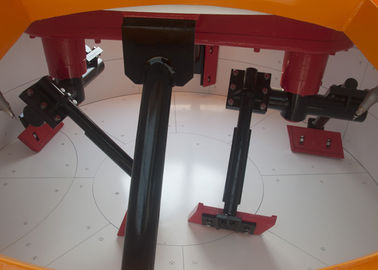

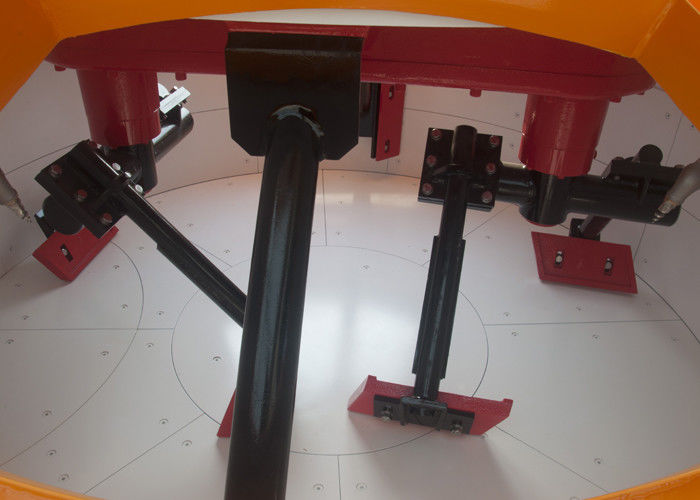

Concrete mixer is advanced at home and abroad, the ideal model, and has a high degree of automation, mixing of good quality, easy operation, high efficiency, low energy consumption, low noise, fast discharging, convenient maintenance, long service life of lining and blade. Applicable to plasticity, ductility, and lightweight aggregate concrete and various mortar mixing. Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.
| Technical Specification | ||||||||||||||
| ITEM/(PMC) | PMC 50 |
PMC 100 |
PMC 150 |
PMC 250 |
PMC 330 |
PMC 500 |
PMC 750 |
PMC 1000 |
PMC 1250 |
PMC 1500 |
PMC 2000 |
PMC 2500 |
PMC 3000 |
PMC 4000 |
| Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
| Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
| Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
| Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 160 |
| Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
| Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
| Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
| Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
| Dimension (L*W*H) mm | 950* 790* 1200 |
1664* 1453* 1487 |
1670* 1460* 1620 |
1860* 1650* 1780 |
1870* 1870* 1855 |
2230* 2080* 1880 |
2580* 2340* 2195 |
2891* 2602* 2237 |
3058* 2756* 2395 |
3223* 2902* 2470 |
3625* 3230* 2695 |
3893* 3550* 2875 |
3893* 3550* 3085 |
4594* 4150* 3634 |
