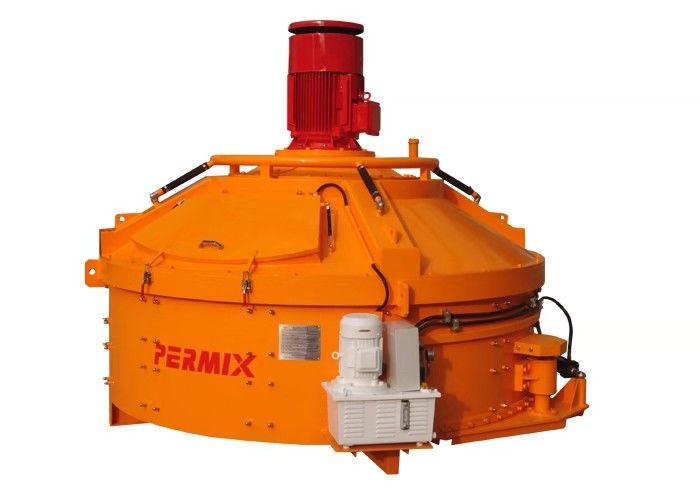

PMC2500 Planetary Concrete Mixer 2500L Capacity Aggregate Powder High Density

PMC2500 Planetary Concrete Mixer 2500L Capacity Aggregate Powder High Density

    • PMC2500 Planetary Concrete Mixer 2500L Capacity Aggregate Powder High Density
  • PMC2500 Planetary Concrete Mixer 2500L Capacity Aggregate Powder High Density

    Product Details:

    Place of Origin: JIAOZHOU CHINA
    Brand Name: PERMIX
    Certification: CE
    Model Number: PMC2500

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Export Standard Package
    Delivery Time: 15-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 5-10 units per month
    Contact Now
    Detailed Product Description
    Product Name: Counter Current Planetary Mixer Input Capacity: 3750L
    Output Capacity: 2500L Input Weight: 6000kgs
    Mixing Power: 90kw Blade QTY: 3*3
    High Light:

    concrete mixer

    ,

    hydraulic concrete mixer

    PMC2500 Planetary Concrete Mixer 2500L Capacity Aggregate Powder High density

    1. APPLICATION INDUSTRIES



    1. Concrete

    Precast concrete: various block bricks, sleepers, track slabs, metro tunnel segments, PC components, PCCP water pipe,

    Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,

    High Performance ready-mixed concrete: Self-leveling mortar, etc.

    2. Refractories: Unshaped refractories, refractory bricks,Ceramics,

    3. Glass Raw Material,

    4. Pot Clay,

    5. Ceramics,

    6. Casting materials: Sand mixing, casting coatings,

    Others



    Mixer advantages



    Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. Planetary Concrete Mixer  has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. It can also provide matching hosts for the mixing station. It is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges.  The product design structure is reasonable, the layout is novel, and it is easy to use and maintain. Users can use dump trucks and mixer trucks for their own use. At the same time, they can also be restructured according to the special requirements of users to meet their needs.



    Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.

    The mixing track as follows.

    PMC2500 Planetary Concrete Mixer 2500L Capacity Aggregate Powder High Density 0



    Technical Specification
    ITEM/(PMC)

    PMC

    50

    PMC

    100

    PMC

    150

    PMC

    250

    PMC

    330

    PMC

    500

    PMC

    750

    PMC

    1000

    PMC

    1250

    PMC

    1500

    PMC

    2000

    PMC

    2500

    PMC

    3000

    PMC 4000
    Feeding Capacity (L) 75 150 225 375 500 750 1125 1500 1875 2250 3000 3750 4500 6000
    Output Capacity (L) 50 100 150 250 330 500 750 1000 1250 1500 2000 2500 3000 4000
    Feeding Weight (kg) 120 240 360 600 800 1200 1800 2400 3000 3600 4800 6000 7200 9600
    Mixing Power (kw) 3 5.5 7.5 11 15 18.5 30 37 45 55 75 90 110 132
    Discharging Power (kw) Pneumatic Discharge(Hydraulic Discharge Optional) 3 3 3 4 4 4 4
    Mixing Star*Blade 1*2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 2*2 3*2 3*3 3*3 3*3
    Side Scraper 1 1 1 1 1 1 1 1 1 1 1 1 1 1
    Discharge Scraper - - 1 1 1 1 1 1 1 1 2 2 2 2
    Weight (kg) 750 1000 1300 1500 2000 2400 3900 5500 6000 6500 9200 11000 12000 17500
    Lifting Power (kw) - - - 3 4 4 7.5 11 11 15 18.5 22 30 -
    Dimension (L*W*H) mm

    950*

    790*

    1200

    1664*

    1453*

    1487

    1670*

    1460*

    1620

    1860*

    1650*

    1780

    1870*

    1870*

    1855

    2230*

    2080*

    1880

    2580*

    2340*

    2195

    2891*

    2602*

    2237

    3058*

    2756*

    2395

    3223*

    2902*

    2470

    3625*

    3230*

    2695

    3893*

    3550*

    2875

    3893*

    3550*

    3085

    4594*

    4150*

    3634



    PMC2500 Planetary Concrete Mixer 2500L Capacity Aggregate Powder High Density 1
