Place of Origin: | JIAOZHOU CHINA |
Brand Name: | PERMIX |
Certification: | CE |
Model Number: | PMC2500 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiation |
Packaging Details: | Export Standard Package |
Delivery Time: | 15-20 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5-10 units per month |

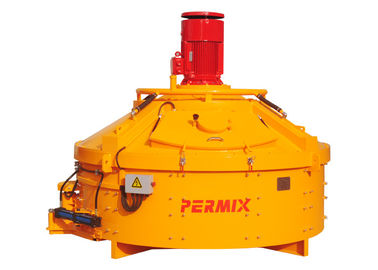

Product Name: | Counter Current Planetary Mixer | Input Capacity: | 3750L |
---|---|---|---|
Output Capacity: | 2500L | Input Weight: | 6000kgs |
Mixing Power: | 90kw | Blade QTY: | 3*3 |
High Light: | concrete mixer,hydraulic concrete mixer |

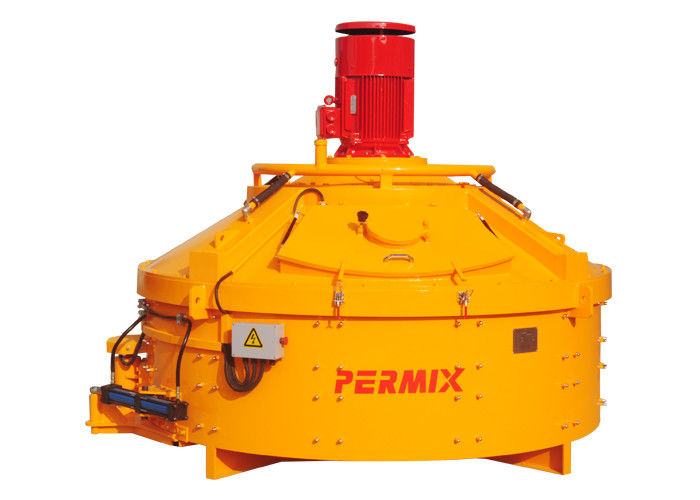

Simple Structure PMC750 Counter Current Planetary Mixer No Hidden Corners
1.APPLICATION INDUSTRIES
1.Concrete
Precast concrete: various block bricks, sleepers, track slabs, metro tunnel segments, PC components, PCCP water pipe,
Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,
High Performance ready-mixed concrete: Self-leveling mortar, etc.
2.Refractories: Unshaped refractories, refractory bricks,Ceramics,
3.Casting materials: Sand mixing, casting coatings,
4.Glass Raw Material,
5.Ceramics,
6.Pot Clay,
Others
2. Protection Against Wear
The materials and coatings used to manufacture those components that come into contact with abrasive substances are specially selected for each individual application.
(1) stainless steel materials.
(2) surfacing materials.
(3) highchrome alloy.
(4)wear - resistant alloy plates.
(5) ceramic materials
(6) polyurethane material.
(7) high wear resistant rubber and cast stone materials.
3.Transmission System
The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender.The gearbox unit specially designed for a balanced distributor of power to the various mixing device and realize rotation and revolution, ensuring a high efficiency and low noise rotation.
4.Maintaining Door
Large size maintaining door for easy maintenance and cleaning. The safety control device ensures that the mixer will not start during maintenance.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.
The mixing track as follows.
Technical Specification | ||||||||||||||
ITEM/(PMC) |
PMC 50 |
PMC 100 |
PMC 150 |
PMC 250 |
PMC 330 |
PMC 500 |
PMC 750 |
PMC 1000 |
PMC 1250 |
PMC 1500 |
PMC 2000 |
PMC 2500 |
PMC 3000 |
PMC 4000 |
Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 |
Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
Dimension (L*W*H) mm |
950* 790* 1200 |
1664* 1453* 1487 |
1670* 1460* 1620 |
1860* 1650* 1780 |
1870* 1870* 1855 |
2230* 2080* 1880 |
2580* 2340* 2195 |
2891* 2602* 2237 |
3058* 2756* 2395 |
3223* 2902* 2470 |
3625* 3230* 2695 |
3893* 3550* 2875 |
3893* 3550* 3085 |
4594* 4150* 3634 |
