|Place of Origin:||JIAOZHOU CHINA|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||Export Standard Package|
|Delivery Time:||15-20 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||5-10 units per month|
|Weight:||9200kgs||Bottom Scraper QTY:||3|
|Side Scraper QTY:||1||Color:||Orange|
hydraulic concrete mixer
High Homogenization Of Planetary Mixing Counter Current Mixer 1-3 Unloading Doors PMC2000
Features of Planetary mixer
Planetary mixer is a new type of high efficiency, stirring without dead corner equipment; it has a unique form of stirring.Mixer has good deaeration effect, the cylinder body can be designed to be heated or cooled according to customers' needs. Planet drive the two stirring shaft turns around the material barrel, at the same time, the stirring shaft is high-speed operation, so that the material is strong shearing action, achieve full dispersion and mixing effect.Cylinder with special seal structure and have the pressure or vacuum stirring. The cover is hydraulic lifting, convenient to operate and clean and the cylinder body can move freely.
Product advantage and description
Concrete mixer consists of feeding mechanism, discharging mechanism,mixing mechanism, water supply system, electric control system, etc. Plasticity, ductility, briquettability concrete and all kinds of mortar can be mixed.

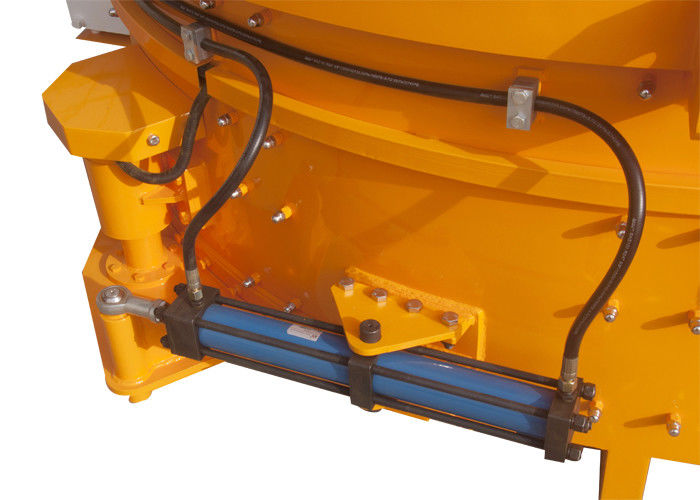

Concrete mixer is advanced at home and abroad, the ideal model, and has a high degree of automation, mixing of good quality, high efficiency, easy operation, fast discharging, long service life of lining and blade,low energy consumption, low noise, convenient maintenance. Applicable to plasticity, ductility, and lightweight aggregate concrete and various mortar mixing.In this mchine, the two horizontal mixing shafts are mixed with the reverse equal-speed rotation, which can be realized the maneuvering discharge through the pneumatic piston push rod.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.
The mixing track as follows.
|PMC 2000||PMC |
|Feeding Capacity (L)||75||150||225||375||500||750||1125||1500||1875||2250||3000||3750||4500||6000|
|Output Capacity (L)||50||100||150||250||330||500||750||1000||1250||1500||2000||2500||3000||4000|
|Feeding Weight (kg)||120||240||360||600||800||1200||1800||2400||3000||3600||4800||6000||7200||9600|
|Mixing Power (kw)||3||5.5||7.5||11||15||18.5||30||37||45||55||75||90||110||160|
|Discharging Power (kw)||Pneumatic Discharge(Hydraulic Discharge Optional)||3||3||3||4||4||4||4|
|Lifting Power (kw)||-||-||-||3||4||4||7.5||11||11||15||18.5||22||30||-|
|Dimension (L*W*H) mm||950*|
