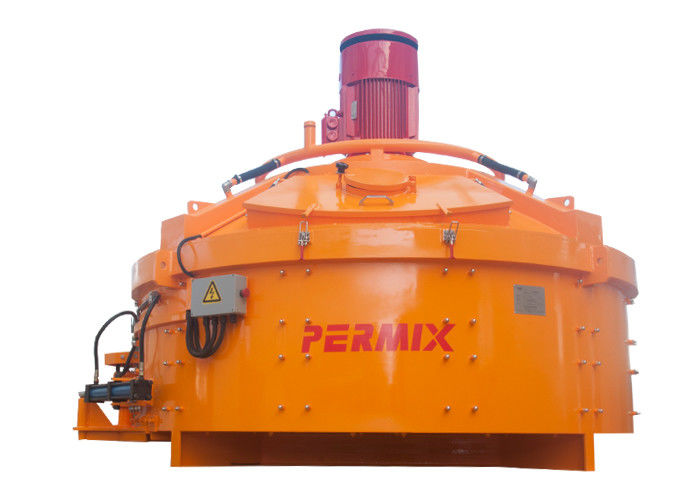

PMC1500 Planetary Cement Mixer / Industrial Concrete Mixer High Homogenization

PMC1500 Planetary Cement Mixer / Industrial Concrete Mixer High Homogenization

  • PMC1500 Planetary Cement Mixer / Industrial Concrete Mixer High Homogenization
PMC1500 Planetary Cement Mixer / Industrial Concrete Mixer High Homogenization
Product Details:
Place of Origin: JIAOZHOU CHINA
Brand Name: PERMIX
Certification: CE
Model Number: PMC1500
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Export Standard Package
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 5-10 units per month
Contact Now
Detailed Product Description
Material: Steel Input Capacity: 2250L
Input Weight: 3600kgs Mixing Power: 55kw
Blade QTY: 2*2 Color: Orange
High Light:

commercial cement mixer

,

concrete mixer

Planetary Concrete Mixer High Chrome Alloy PMC1500

Transmission System



The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender.

The gearbox unit specially designed for a balanced distributor of power to the various mixing device and realize rotation and revolution, ensuring a high efficiency and low noise rotation.

Maintaining Door



Large size maintaining door for easy maintenance and cleaning. The safety control device ensures that the mixer will not start during maintenance.

Features of Planetary mixer


Planetary mixer is a new type of high efficiency, stirring without dead corner equipment; it has a unique form of stirring. Planet drive the two stirring shaft turns around the material barrel, at the same time, the stirring shaft is high-speed operation, so that the material is strong shearing action, achieve full dispersion and mixing effect. In addition to the equipment within the knife scraping wall around the cylinder axis rotation, will be stuck on the wall material scraping and then put them into mixing shear, that make no residual material in the mixer and mixing effect is more ideal.

Mixer has good deaeration effect, the cylinder body can be designed to be heated or cooled according to customers' needs. The cover is hydraulic lifting, convenient to operate and clean and the cylinder body can move freely.Cylinder with special seal structure and have the pressure or vacuum stirring.



Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.



Technical Data
  PMC50 PMC
100
PMC
150
PMC
250
PMC
330
PMC
500
PMC
750
PMC
1000
PMC
1500
PMC
2000
PMC
2500
PMC
3000
PMC
4000
PMC
4500
Output capacity(L) 50 100 150 250 330 500 750 1000 1500 2000 2500 3000 4000 4500
Input capacity(L) 75   225 375 500 750 1125 1500 2250 3000 3750 4500 6000 6750
Input capacity(kg) 120   360 600 800 1200 1800 2400 3600 4800 6000 7200 9600 10800
Diameter of Mixing Tank(mm)       1300 1540 1900 2192 2496 2796 3100 3400 3400
Mixing Power kw 3 7.5 11 15 18.5 22 30 37 55 75 90 110 160 200
Blade QTY 1/2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 3*2 3/6 3/9 3/9 3/9
Side Scraper QTY 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Bottom Scraper QTY 1 1 1 1 1 1 1 1 1 1 2 2 2 2
Weight(kg) 700   1000 1200 1700 2000 3500 6000 7000 8500 10500 11000 16000 18000
