Place of Origin: | JIAOZHOU CHINA |
Brand Name: | PERMIX |
Certification: | CE |
Model Number: | PMC1500 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiation |
Packaging Details: | Export Standard Package |
Delivery Time: | 15-20 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5-10 units per month |
Material: | Steel | Input Capacity: | 2250L |
---|---|---|---|
Input Weight: | 3600kgs | Mixing Power: | 55kw |
Blade QTY: | 2*2 | Color: | Orange |
High Light: | commercial cement mixer,concrete mixer |

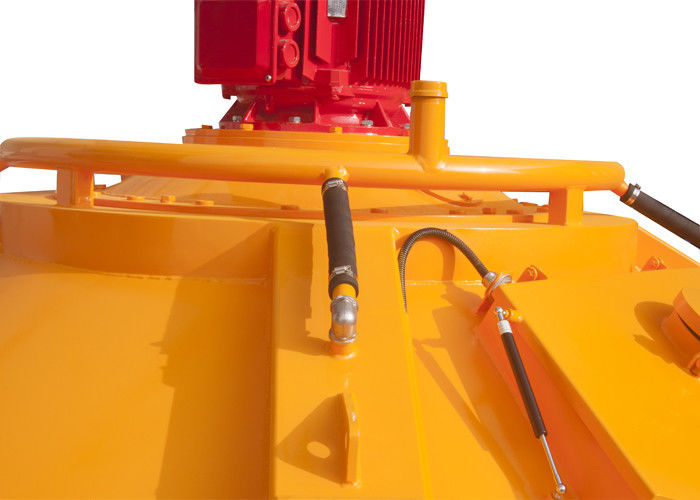

Planetary Concrete Mixer High Chrome Alloy PMC1500
Transmission System
The gearbox unit specially designed for a balanced distributor of power to the various mixing device and realize rotation and revolution, ensuring a high efficiency and low noise rotation.
The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender.
Maintaining Door
The safety control device ensures that the mixer will not start during maintenance.Large size maintaining door for easy maintenance and cleaning.
Features of Planetary mixer
Planetary mixer is a new type of high efficiency, stirring without dead corner equipment; it has a unique form of stirring. Cylinder with special seal structure and have the pressure or vacuum stirring. Planet drive the two stirring shaft turns around the material barrel, at the same time, the stirring shaft is high-speed operation, so that the material is strong shearing action, achieve full dispersion and mixing effect.Mixer has good deaeration effect, the cylinder body can be designed to be heated or cooled according to customers' needs. The cover is hydraulic lifting, convenient to operate and clean and the cylinder body can move freely. In addition to the equipment within the knife scraping wall around the cylinder axis rotation, will be stuck on the wall material scraping and then put them into mixing shear, that make no residual material in the mixer and mixing effect is more ideal.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.
Technical Data | ||||||||||||||
PMC50 | PMC 100 |
PMC 150 |
PMC 250 |
PMC 330 |
PMC 500 |
PMC 750 |
PMC 1000 |
PMC 1500 |
PMC 2000 |
PMC 2500 |
PMC 3000 |
PMC 4000 |
PMC 4500 |
|
Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
Input capacity(L) | 75 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | |
Input capacity(kg) | 120 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | |
Diameter of Mixing Tank(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | |||||
Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Weight(kg) | 700 | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 |
