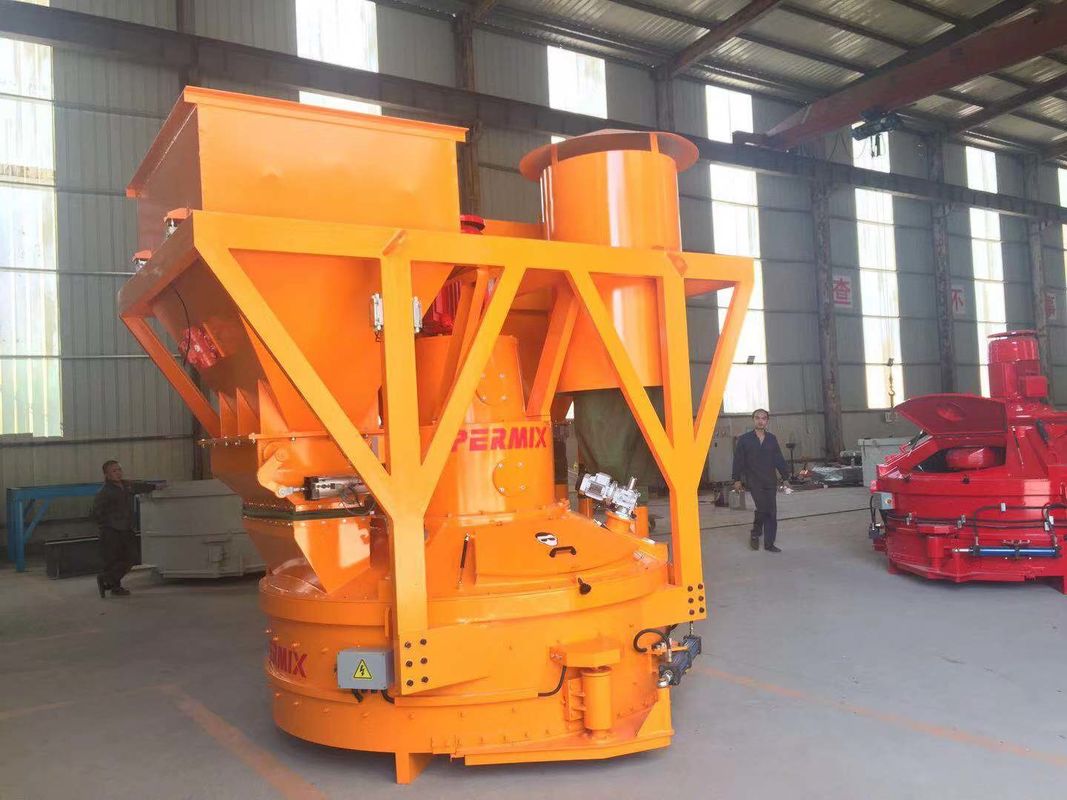

PMC1250 Vertical Shaft Planetary Mixer Flexible Layout 30kw Mixing Power

PMC1250 Vertical Shaft Planetary Mixer Flexible Layout Simple structure

1. APPLICATION INDUSTRIES
1. Concrete

Precast concrete: track slabs, various block bricks, sleepers, metro tunnel segments,PC components, PCCP water pipe,Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,High Performance ready-mixed concrete: Self-leveling mortar, etc.

2. Ceramics,
3. Casting materials: Sand mixing, casting coatings,
4. Pot Clay,
5. Glass Raw Material,

6. Refractories: Unshaped refractories, refractory bricks,
Others

2. Mixer advantages

Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain. The machine has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. At the same time, they can also be restructured according to the special requirements of users to meet their needs.Users can use dump trucks and mixer trucks for their own use. It can also provide matching hosts for the mixing station. It is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges.

3. The Skip Hopper

The device effectively prevents the dust overflow the trough during the mixing to protect the environment.The feeding door automatically opens when feeding, and closes when the hopper begins to descend. Skip hopper can be chosen according to the requirements of customers.

Advantages


High Homogenization
Low Energy Consumption
Simple Structure,Short Mixing Time,
Simple and Convenient Maintenance
Compact Structure and Small Space required
1-3 unloading doors , flexible Layout are optional for different production lines.

Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.


The mixing track as follows.
