| Place of Origin: | JIAOZHOU CHINA |
| Brand Name: | PERMIX |
| Certification: | CE |
| Model Number: | PMC100 |
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Export Standard Package |
| Delivery Time: | 15-20days |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 5-10 units per month |
| Input Capacity: | 150L | Output Capacity: | 100L |
|---|---|---|---|
| Mixing Power: | 5.5kw | Sidescraper: | 1 |
| Color: | Orange | Weight: | 1000kg |
| High Light: | commercial cement mixer,hydraulic concrete mixer |
||
PMC Advantages:
1.Good distribution of the mix including fine grained materials
2.Fast homogenisation
3.Accurate repetition
4.High energy efficiency
5.High flexible speeds of mixer tools and whirlers
6.Efficient energy transfer into the product
7.Minimal mixing quantities are possible
8.Low contamination and build -up in the mixer
9.Outstanding ability to produce high quality concretes
Recipes, aggregates, admixtures and colour are increasingly innovative and specialised. To get the best possible results they need to be mixed perfectly. It sets a completely new standard for the quality of mixing results and reveals to the future for mixing technology.

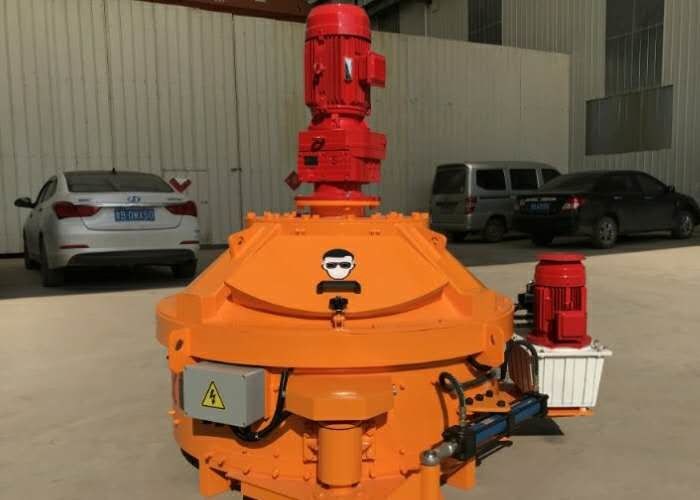

The PMC planetary mixer is an uncomplicated and sturdy mixer that is setting standards with its reliability and durability. Its compact method of constuction, the service free layout of all the components and its high quality equipment make it a trustworthy mixer for rough daily operations.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and
scraper tools on a specially designed drive system.
| Technical Data | ||||||||||||||
| PMC50 | PMC 100 |
PMC 150 |
PMC 250 |
PMC 330 |
PMC 500 |
PMC 750 |
PMC 1000 |
PMC 1500 |
PMC 2000 |
PMC 2500 |
PMC 3000 |
PMC 4000 |
PMC 4500 |
|
| Output capacity(L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1500 | 2000 | 2500 | 3000 | 4000 | 4500 |
| Input capacity(L) | 75 | 225 | 375 | 500 | 750 | 1125 | 1500 | 2250 | 3000 | 3750 | 4500 | 6000 | 6750 | |
| Input capacity(kg) | 120 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3600 | 4800 | 6000 | 7200 | 9600 | 10800 | |
| Diameter of Mixing Tank(mm) | 1300 | 1540 | 1900 | 2192 | 2496 | 2796 | 3100 | 3400 | 3400 | |||||
| Mixing Power kw | 3 | 7.5 | 11 | 15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 160 | 200 |
| Blade QTY | 1/2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 3*2 | 3/6 | 3/9 | 3/9 | 3/9 |
| Side Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
| Bottom Scraper QTY | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
| Weight(kg) | 700 | 1000 | 1200 | 1700 | 2000 | 3500 | 6000 | 7000 | 8500 | 10500 | 11000 | 16000 | 18000 | |
