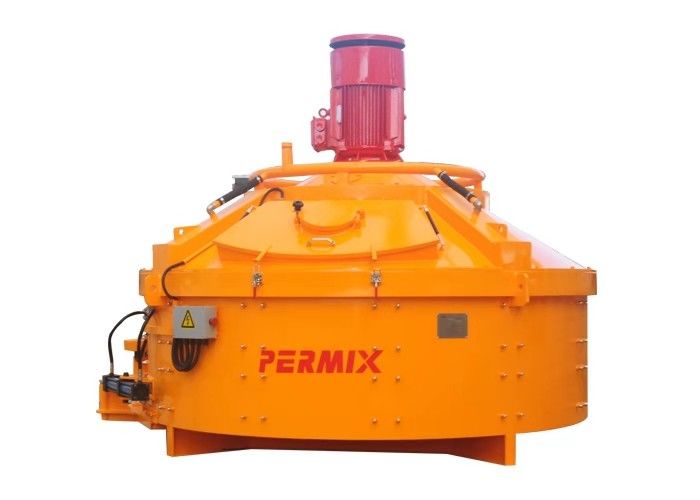

PMC1000 Precast Concrete Planetary Mixer Vertical Shaft Precast Panel

PMC1000 Precast Concrete Planetary Mixer Vertical Shaft Precast Panel

    • PMC1000 Precast Concrete Planetary Mixer Vertical Shaft Precast Panel
  • PMC1000 Precast Concrete Planetary Mixer Vertical Shaft Precast Panel

    Product Details:

    Place of Origin: JIAOZHOU CHINA
    Brand Name: PERMIX
    Certification: CE
    Model Number: PMC1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Export Standard Package
    Delivery Time: 15-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 5-10 units per month
    Contact Now
    Detailed Product Description
    Product Name: Planetary Cement Mixer Input Weight: 2400kgs
    Output Capacity: 1000L Mixing Power: 37kw
    Bottom Scraper QTY: 1 Brand: PERMIX
    High Light:

    portable concrete mixer

    ,

    electric cement mixer

    PMC1000 Precast Concrete Planetary Mixer with CE Korea Vertical Shaft Precast Panel

    APPLICATION INDUSTRIES



    1. Concrete

    Precast concrete: PC components, PCCP water pipe,various block bricks, track slabs, metro tunnel segments, sleepers,

    Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,

    High Performance ready-mixed concrete: Self-leveling mortar, etc.

    2. Ceramics,

    3. Pot Clay,

    4. Casting materials: Sand mixing, casting coatings,

    5. Refractories: Unshaped refractories, refractory bricks,

    6. Glass Raw Material,

    Others



    Mixer advantages



    Precast Concrete Planetary Mixer can also provide matching hosts for the mixing station. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain. Users can use dump trucks and mixer trucks for their own use. Precast Concrete Planetary Mixer has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. At the same time, they can also be restructured according to the special requirements of users to meet their needs.Precast Concrete Planetary Mixer is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges.







    Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.

    The mixing track as follows.





    PMC1000 Precast Concrete Planetary Mixer Vertical Shaft Precast Panel 0





    Technical Specification
    ITEM/(PMC)

    PMC
    50

    PMC
    100

    PMC
    150

    PMC
    250

    PMC
    330

    PMC
    500

    PMC
    750

    PMC
    1000

    PMC
    1250

    PMC
    1500

    PMC
    2000

    PMC
    2500

    PMC
    3000

    PMC 4000
    Feeding Capacity (L)7515022537550075011251500187522503000375045006000
    Output Capacity (L)501001502503305007501000125015002000250030004000
    Feeding Weight (kg)120240360600800120018002400300036004800600072009600
    Mixing Power (kw)35.57.5111518.5303745557590110132
    Discharging Power (kw)Pneumatic Discharge(Hydraulic Discharge Optional)3334444
    Mixing Star*Blade1*21*21*21*21*21*21*32*22*22*23*23*33*33*3
    Side Scraper11111111111111
    Discharge Scraper--111111112222
    Weight (kg)7501000130015002000240039005500600065009200110001200017500
    Lifting Power (kw)---3447.511111518.52230-
    Dimension (L*W*H) mm

    950*
    790*
    1200

    1664*
    1453*
    1487

    1670*
    1460*
    1620

    1860*
    1650*
    1780

    1870*
    1870*
    1855

    2230*
    2080*
    1880

    2580*
    2340*
    2195

    2891*
    2602*
    2237

    3058*
    2756*
    2395

    3223*
    2902*
    2470

    3625*
    3230*
    2695

    3893*
    3550*
    2875

    3893*
    3550*
    3085

    4594*
    4150*
    3634
