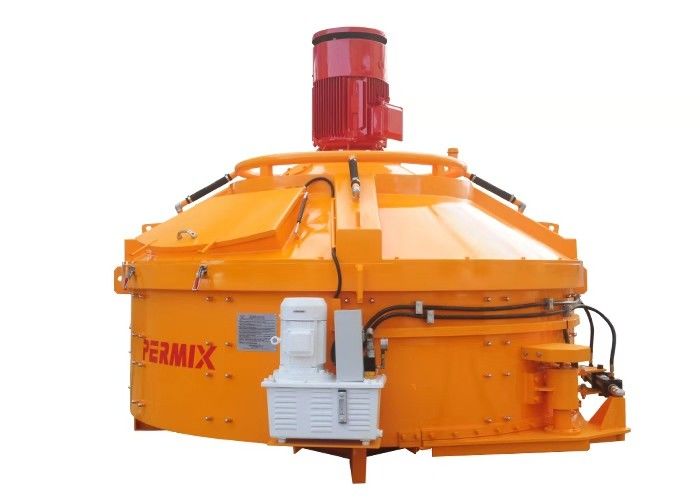

PMC1000 Planetary Concrete Mixer 2400kgs Input Weight Fast Discharging Speed

PMC1000 Planetary Concrete Mixer 2400kgs Input Weight Fast Discharging Speed

    • PMC1000 Planetary Concrete Mixer 2400kgs Input Weight Fast Discharging Speed
  • PMC1000 Planetary Concrete Mixer 2400kgs Input Weight Fast Discharging Speed

    Product Details:

    Place of Origin: JIAOZHOU CHINA
    Brand Name: PERMIX
    Certification: CE
    Model Number: PMC1000

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Export Standard Package
    Delivery Time: 15-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 5-10 units per month
    Contact Now
    Detailed Product Description
    Product Name: Planetary Cement Mixer Input Weight: 2400kgs
    Output Capacity: 1000L Mixing Power: 37kw
    Bottom Scraper QTY: 1 Brand: PERMIX
    High Light:

    concrete mixer

    ,

    hydraulic concrete mixer

    PMC1000 Planetary Concrete Mixer 1500L inout capacity 11Kw Lifting Power



    Product advantage and description



    The concrete mixer is the advanced and ideal model at home and abroad. It has the advantages of high automation, convenient operation, high efficiency, low noise, good mixing quality, long service life of lining plate and blade, fast discharging speed, low energy consumption, convenient maintenance and so on. It is suitable for mixing plastic, dry, lightweight aggregate concrete and mortar. Concrete mixer consists of feeding mechanism, stirring mechanism,  unloading mechanism, water supply system, electric control system and so on. It can mix aggregate,dry concrete, gravel,  plastic concrete, lightweight aggregate concrete and all kinds of mortar. The pneumatic piston push rod is used to discharge the motor automatically when discharging. The two horizontal mixing shafts in the mixing drum of the machine are stirred by reverse rotation at the same speed.







    Technical Specification
    ITEM/(PMC)

    PMC
    50

    PMC
    100

    PMC
    150

    PMC
    250

    PMC
    330

    PMC
    500

    PMC
    750

    PMC
    1000

    PMC
    1250

    PMC
    1500

    PMC
    2000

    PMC
    2500

    PMC
    3000

    PMC 4000
    Feeding Capacity (L) 75 150 225 375 500 750 1125 1500 1875 2250 3000 3750 4500 6000
    Output Capacity (L) 50 100 150 250 330 500 750 1000 1250 1500 2000 2500 3000 4000
    Feeding Weight (kg) 120 240 360 600 800 1200 1800 2400 3000 3600 4800 6000 7200 9600
    Mixing Power (kw) 3 5.5 7.5 11 15 18.5 30 37 45 55 75 90 110 132
    Discharging Power (kw) Pneumatic Discharge(Hydraulic Discharge Optional) 3 3 3 4 4 4 4
    Mixing Star*Blade 1*2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 2*2 3*2 3*3 3*3 3*3
    Side Scraper 1 1 1 1 1 1 1 1 1 1 1 1 1 1
    Discharge Scraper - - 1 1 1 1 1 1 1 1 2 2 2 2
    Weight (kg) 750 1000 1300 1500 2000 2400 3900 5500 6000 6500 9200 11000 12000 17500
    Lifting Power (kw) - - - 3 4 4 7.5 11 11 15 18.5 22 30 -
    Dimension (L*W*H) mm

    950*
    790*
    1200

    1664*
    1453*
    1487

    1670*
    1460*
    1620

    1860*
    1650*
    1780

    1870*
    1870*
    1855

    2230*
    2080*
    1880

    2580*
    2340*
    2195

    2891*
    2602*
    2237

    3058*
    2756*
    2395

    3223*
    2902*
    2470

    3625*
    3230*
    2695

    3893*
    3550*
    2875

    3893*
    3550*
    3085

    4594*
    4150*
    3634
