|Place of Origin:||JIAOZHOU CHINA|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||Export Standard Package|
|Delivery Time:||15-20 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||5-10 units per month|
|Product Name:||Pan Mixer Machine MT500 Concrete Batch Mixer||Input Weight:||500kgs|
|Bottom Scraper QTY:||1||Color:||Red|
electric concrete mixer,
pan type mixer

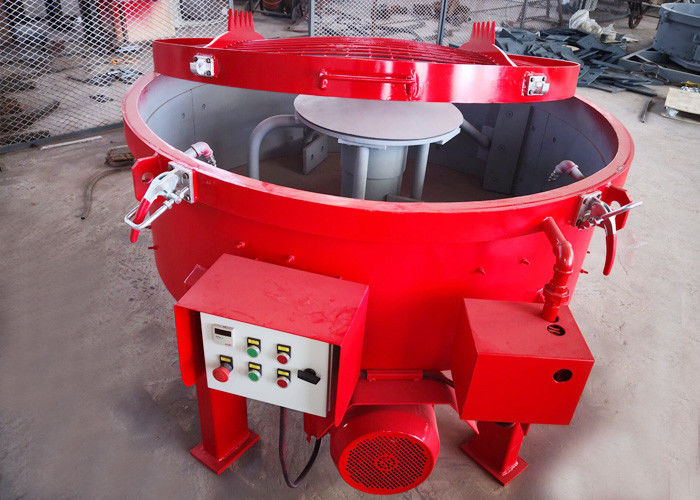

MT500 Refractory Mixer Machine For Mixing Lightweight Aggregate Concrete
The instruction must be followed during operation
1. Do not run over loaded;
2. Stay away from the discharging area to avoid any injury to workers.
3. After each shift, clean the trough, tools, check the tightness of nuts, and open and close the discharging door Several times to ensure it works smoothly,
Check the blades and tiles weekly and replace them if necessary;
4. The anti-wear parts made by our company must be used to avoid any damage to the machine;
5. Discharge material in the trough after an emergency stops. Start with load is forbidden;
Product advantage and description
Concrete mixer consists of feeding mechanism, stirring mechanism, unloading mechanism, water supply system, electric control system and so on. It can mix aggregate, dry concrete, plastic concrete, gravel, lightweight aggregate concrete and all kinds of mortar.The two horizontal mixing shafts in the mixing drum of the machine are stirred by reverse rotation at the same speed. The pneumatic piston push rod is used to discharge the motor automatically when discharging.
The concrete mixer is the advanced and ideal model at home and abroad. It has the advantages of high automation, good mixing quality, high efficiency,low noise, low energy consumption,convenient operation, fast discharging speed, long service life of lining plate and blade, convenient maintenance and so on. It is suitable for mixing plastic, dry, lightweight aggregate concrete and mortar and mortar.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.
|Mixing Capacity /(kg)||100||250||500||800|
|Rated Power||AC380v 50HZ||AC380V 50HZ||AC380V 50HZ||AC380V 50HZ|
