Place of Origin: | JIAOZHOU CHINA |
Brand Name: | PERMIX |
Certification: | CE |
Model Number: | PMC2500 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiation |
Packaging Details: | Export Standard Package |
Delivery Time: | 15-20 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5-10 units per month |
Product Name: | Counter Current Planetary Mixer | Input Capacity: | 3750L |
---|---|---|---|
Output Capacity: | 2500L | Input Weight: | 6000kgs |
Mixing Power: | 90kw | Blade QTY: | 3*3 |
High Light: | refractory mixer machine,refractory paddle mixer |
Simple Structure PMC2500 Counter Current Planetary Mixer No Hidden Corners
Mixer advantages
The product design structure is reasonable, the layout is novel, and it is easy to use and maintain. Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. It can also provide matching hosts for the mixing station.
The machine hasthe simple concrete mixing plant combined with PLD series batching machines and the dual advantages of independent operation. It is suitable for all kinds of large, small and medium prefabricated component plants and highways and bridges. At the same time, they can also be restructured according to the special requirements of users to meet their needs.Users can use dump trucks and mixer trucks for their own use.
1. APPLICATION INDUSTRIES
1. Concrete
Precast concrete: various block bricks, track slabs, sleepers, metro tunnel segments, PC components, PCCP water pipe,
High Performance ready-mixed concrete: Self-leveling mortar, etc.
Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,
2. Refractories:Refractory bricks,Unshaped refractories,
3. Casting materials: Sand mixing, casting coatings,
4.Ceramics,
5. Pot Clay,
6. Glass Raw Material,
Others
2. Protection Against Wear
The materials and coatings used to manufacture those components that come into contact with abrasive substances are specially selected for each individual application.
(1) ceramic materials
(2) stainless steel materials.
(3) polyurethane material.
(4) surfacing materials.
(5) wear - resistant alloy plates.
(6) high wear resistant rubber and cast stone materials.
(7) highchrome alloy.
3. Maintaining Door
Large size maintaining door for easy maintenance and cleaning. The safety control device ensures that the mixer will not start during maintenance.
4.Transmission System
The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender.The gearbox unit specially designed for a balanced distributor of power to realize rotationand the various mixing device and revolution, ensuring a high efficiency and low noise rotation.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.
Technical Specification | ||||||||||||||
ITEM/(PMC) |
PMC 50 |
PMC 100 |
PMC 150 |
PMC 250 |
PMC 330 |
PMC 500 |
PMC 750 |
PMC 1000 |
PMC 1250 |
PMC 1500 |
PMC 2000 |
PMC 2500 |
PMC 3000 |
PMC 4000 |
Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 |

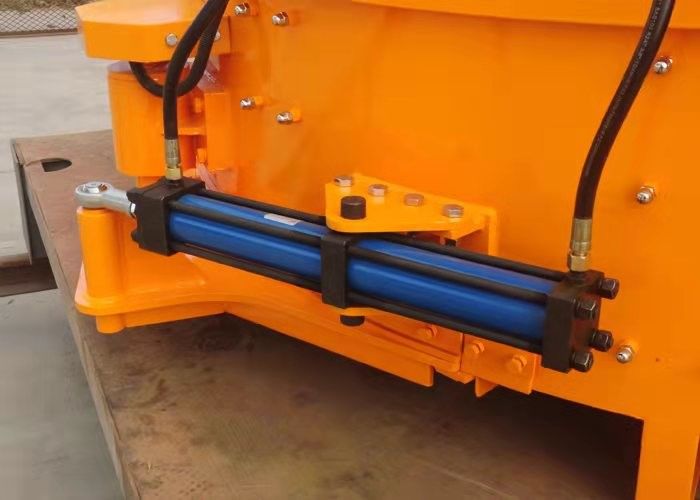

Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
Dimension (L*W*H) mm |
950* 790* 1200 |
1664* 1453* 1487 |
1670* 1460* 1620 |
1860* 1650* 1780 |
1870* 1870* 1855 |
2230* 2080* 1880 |
2580* 2340* 2195 |
2891* 2602* 2237 |
3058* 2756* 2395 |
3223* 2902* 2470 |
3625* 3230* 2695 |
3893* 3550* 2875 |
3893* 3550* 3085 |
4594* 4150* 3634 |
