Product Details:
Place of Origin: JIAOZHOU CHINA
Brand Name: PERMIX
Certification: CE
Model Number: PMC2500
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Export Standard Package
Delivery Time: 15-20 days
Payment Terms: L/C, T/T
Supply Ability: 5-10 units per month
Contact Now
Detailed Product Description
Product Name: Counter Current Planetary Mixer Input Capacity: 3750L
Output Capacity: 2500L Input Weight: 6000kgs
Mixing Power: 90kw Blade QTY: 3*3
High Light:

commercial cement mixer

,

concrete mixer

PMC2500 Counter Current Planetary Mixer

Simple Structure  No Hidden Corners



1.



Maintaining Door



Large size maintaining door for easy maintenance and cleaning. The safety control device ensures that the mixer will not start during maintenance.

2.



Transmission System



The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender. The gearbox unit specially designed for a balanced distributor of power to the various mixing device and realize rotation and revolution, ensuring a high efficiency and low noise rotation.



3.

APPLICATION INDUSTRIES



1. Concrete

Precast concrete: various block bricks, metro tunnel segments,sleepers, track slabs, PC components, PCCP water pipe,

Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,

High Performance ready-mixed concrete: Self-leveling mortar, etc.



2. Glass Raw Material,

3. Refractories: Unshaped refractories, refractory bricks,

4. Ceramics,

5. Pot Clay,

6. Casting materials: Sand mixing, casting coatings,

Others

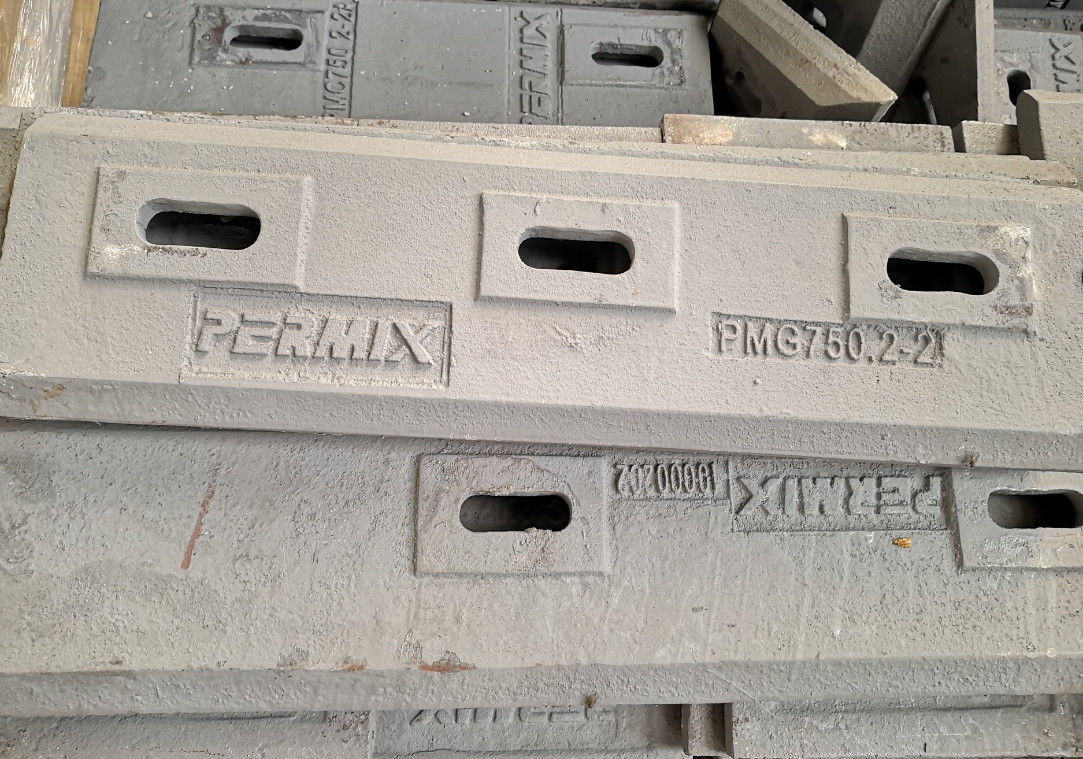

4. Protection Against Wear



The materials and coatings used to manufacture those components that come into contact with abrasive substances are specially selected for each individual application.



(1) stainless steel materials.

(2) highchrome alloy.

(3) wear - resistant alloy plates.

(4) high wear resistant rubber and cast stone materials.

(5) ceramic materials.

(6) surfacing materials.

(7) polyurethane material.











Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.



The mixing track as follows.

Large Capacity Planetary Cement Mixer Low Energy Consumption PMC2500 Precast 0







Technical Specification
ITEM/(PMC)

PMC

50

PMC

100

PMC

150

PMC

250

PMC

330

PMC

500

PMC

750

PMC

1000

PMC

1250

PMC

1500

PMC

2000

PMC

2500

PMC

3000

PMC 4000
Feeding Capacity (L) 75 150 225 375 500 750 1125 1500 1875 2250 3000 3750 4500 6000
Output Capacity (L) 50 100 150 250 330 500 750 1000 1250 1500 2000 2500 3000 4000
Feeding Weight (kg) 120 240 360 600 800 1200 1800 2400 3000 3600 4800 6000 7200 9600
Mixing Power (kw) 3 5.5 7.5 11 15 18.5 30 37 45 55 75 90 110 132
Discharging Power (kw) Pneumatic Discharge(Hydraulic Discharge Optional) 3 3 3 4 4 4 4
Mixing Star*Blade 1*2 1*2 1*2 1*2 1*2 1*2 1*3 2*2 2*2 2*2 3*2 3*3 3*3 3*3
Side Scraper 1 1 1 1 1 1 1 1 1 1 1 1 1 1
Discharge Scraper - - 1 1 1 1 1 1 1 1 2 2 2 2
Weight (kg) 750 1000 1300 1500 2000 2400 3900 5500 6000 6500 9200 11000 12000 17500
Lifting Power (kw) - - - 3 4 4 7.5 11 11 15 18.5 22 30 -
Dimension (L*W*H) mm

950*

790*

1200

1664*

1453*

1487

1670*

1460*

1620

1860*

1650*

1780

1870*

1870*

1855

2230*

2080*

1880

2580*

2340*

2195

2891*

2602*

2237

3058*

2756*

2395

3223*

2902*

2470

3625*

3230*

2695

3893*

3550*

2875

3893*

3550*

3085

4594*

4150*

3634









Large Capacity Planetary Cement Mixer Low Energy Consumption PMC2500 Precast 1
