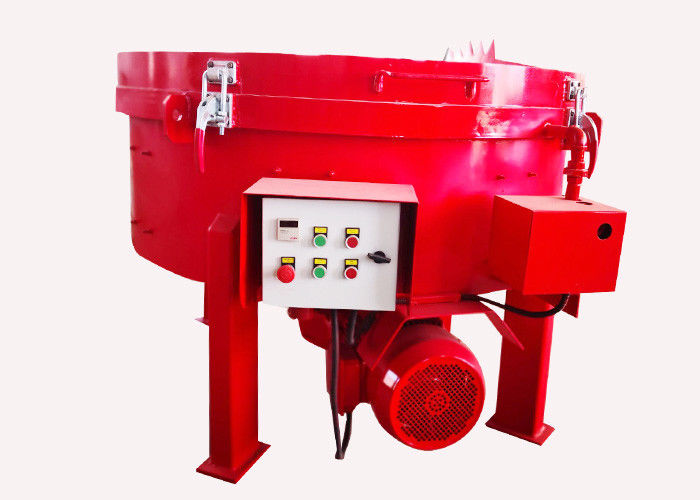

Industrial Cement Concrete Pan Mixer Low Energy Consumption Discharge Material

Industrial Cement Concrete Pan Mixer Low Energy Consumption Discharge Material

    • Industrial Cement Concrete Pan Mixer Low Energy Consumption Discharge Material
  • Industrial Cement Concrete Pan Mixer Low Energy Consumption Discharge Material

    Product Details:

    Place of Origin: JIAOZHOU CHINA
    Brand Name: PERMIX
    Certification: CE
    Model Number: mt250

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 unit
    Price: Negotiation
    Packaging Details: Export Standard Package
    Delivery Time: 15-20 days
    Payment Terms: L/C, T/T
    Supply Ability: 5-10 units per month
    Contact Now
    Detailed Product Description
    Product Name: Pan Mixer Machine MT250 Concrete Batch Mixer Input Weight: 250kgs
    Weight: 560kgs Scraper: 5
    Bottom Scraper QTY: 1 Color: Red
    High Light:

    pan type concrete mixer

    ,

    pan cement mixer

    Mt250 Pan Refractory industrial cement mixer



    Product advantage and description





    Concrete mixer consists of feeding mechanism, stirring mechanism, unloading mechanism, water supply system, electric control system and so on. It can mix aggregate, gravel, gravel, dry concrete, plastic concrete, lightweight aggregate concrete and all kinds of mortar.The two horizontal mixing shafts in the mixing drum of the machine are stirred by reverse rotation at the same speed. The pneumatic piston push rod is used to discharge the motor automatically when discharging.



    The concrete mixer is the advanced and ideal model at home and abroad. It has the advantages of high automation, good mixing quality, high efficiency, low energy consumption, low noise, convenient operation, fast discharging speed, long service life of lining plate and blade, convenient maintenance and so on. It is suitable for mixing plastic, dry, lightweight aggregate concrete and mortar and mortar.

    Concrete mixer consists of feeding mechanism, stirring mechanism, unloading mechanism, water supply system, electric control system and so on. It can mix aggregate, gravel, gravel, dry concrete, plastic concrete, lightweight aggregate concrete and all kinds of mortar.

    The pneumatic piston push rod is used to discharge the motor automatically when discharging. The two horizontal mixing shafts in the mixing drum of the machine are stirred by reverse rotation at the same speed.





    Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system. The mixing track as follows.

    Operation Instruction



    The instruction must be followed during operation

    1. Stay away from the discharging area to avoid any injury to workers.

    2. Discharge material in the trough after an emergency stops. Start with load is forbidden;

    3. After each shift, clean the trough, tools, check the tightness of nuts, and open and close the discharging door Several times to ensure it works smoothly,

    Check the blades and tiles weekly and replace them if necessary;

    4. The anti-wear parts made by our company must be used to avoid any damage to the machine;

    5. Do not run over loaded;





    ITEM/MT MT100 MT250 MT500 MT800
    Mixing Capacity /(kg) 100 250 500 800
    Scraper/piece 4 5 5 5
    Feeding Height/(mm) 1000 1150 1300 1350
    Mixing Power/(kw) 4 5.5 11 15
    Rated Power AC380v 50HZ AC380V 50HZ AC380V 50HZ AC380V 50HZ
    Weight/(kg) 300 560 900 1200
    Dimension/(L*W*H)/mm 1200*1000*1300 1500*1300*1400 1800*1600*1400 1800*2050*1300





    Industrial Cement Concrete Pan Mixer Low Energy Consumption Discharge Material 0
