|Place of Origin:||JIAOZHOU CHINA|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||Export Standard Package|
|Delivery Time:||15-20 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||5-10 units per month|
|Product Name:||Counter Current Planetary Mixer||Input Capacity:||1875L|
|Input Weight:||3000kgs||Mixing Power:||30kw|
|Output Capacity:||1250L||Side Scraper QTY:||1|
cement brick making machine,
commercial cement mixer

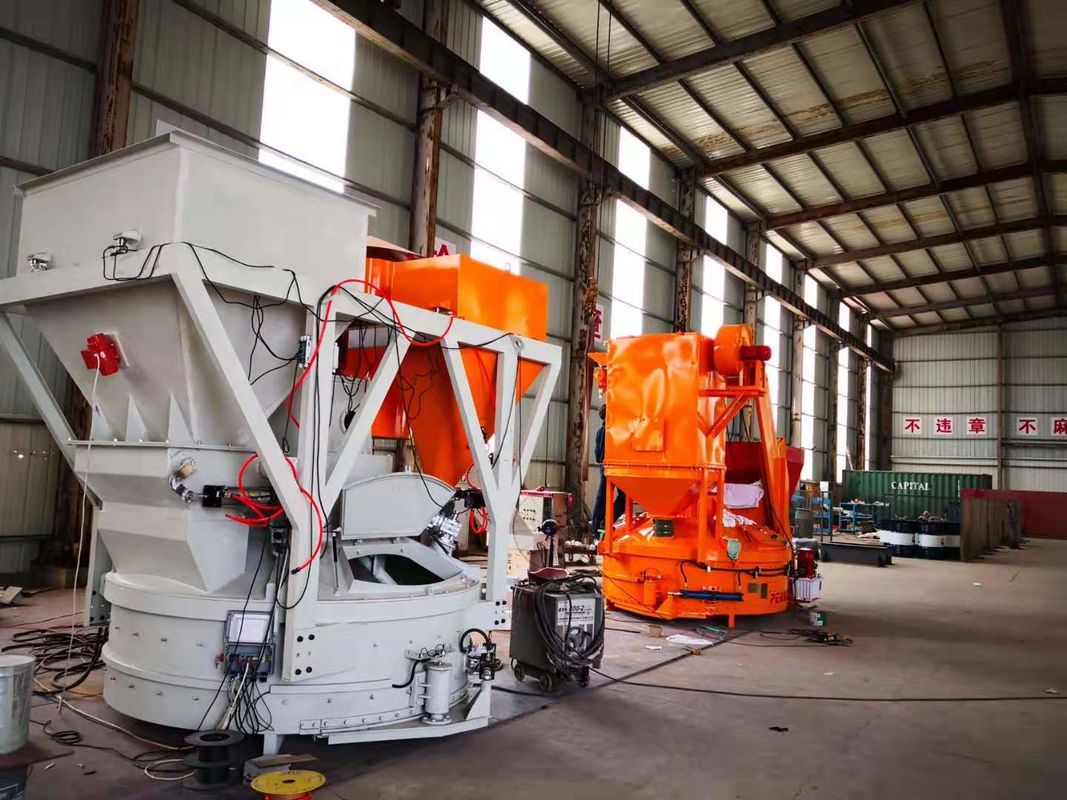

Ceramic Materials Counter Current Mixer No Hidden Corners PMC1250
Wear - Resistant Alloy Plates Planetary Concrete Mixer Stainless Steel Materials
The gearbox unit specially designed for a balanced distributor of power to the various mixing device and realize rotation and revolution, ensuring a high efficiency and low noise rotation. The structure is compact, and the deep mixing the internal part of the gearbox will not adhere to the material and increase the cleaning space of the blender.
1. APPLICATION INDUSTRIES
Precast concrete: metro tunnel segments, various block bricks, sleepers, track slabs, PC components, PCCP water pipe,
Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,
High Performance ready-mixed concrete: Self-leveling mortar, etc.
2. Pot Clay,
3. Casting materials: Sand mixing, casting coatings,
4. Glass Raw Material,
6. Refractories: Refractory bricks,Unshaped refractories,
2. The Skip Hopper
Skip hopper can be chosen according to the requirements of customers. The feeding door automatically opens when feeding, and closes when the hopper begins to descend. The device effectively prevents the dust overflow the trough during the mixing to protect the environment.
3. Mixer advantages
The machine has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. Brick Making Planetary Mixer can also provide matching hosts for the mixing station. Brick Making Planetary Mixer is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges. Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain.Users can use dump trucks and mixer trucks for their own use. At the same time, they can also be restructured according to the special requirements of users to meet their needs.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.
The mixing track as follows.
|Feeding Capacity (L)||75||150||225||375||500||750||1125||1500||1875||2250||3000||3750||4500||6000|
|Output Capacity (L)||50||100||150||250||330||500||750||1000||1250||1500||2000||2500||3000||4000|
|Feeding Weight (kg)||120||240||360||600||800||1200||1800||2400||3000||3600||4800||6000||7200||9600|
|Mixing Power (kw)||3||5.5||7.5||11||15||18.5||30||37||45||55||75||90||110||132|
|Discharging Power (kw)||Pneumatic Discharge(Hydraulic Discharge Optional)||3||3||3||4||4||4||4|
|Lifting Power (kw)||-||-||-||3||4||4||7.5||11||11||15||18.5||22||30||-|
|Dimension (L*W*H) mm||950*
