Place of Origin: | JIAOZHOU CHINA |
Brand Name: | PERMIX |
Certification: | CE |
Model Number: | PMC1000 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiation |
Packaging Details: | Export Standard Package |
Delivery Time: | 15-20 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5-10 units per month |
Product Name: | Planetary Cement Mixer | Input Weight: | 2400kgs |
---|---|---|---|
Output Capacity: | 1000L | Mixing Power: | 37kw |
Bottom Scraper QTY: | 1 | Brand: | PERMIX |
High Light: | portable concrete mixer,electric cement mixer |

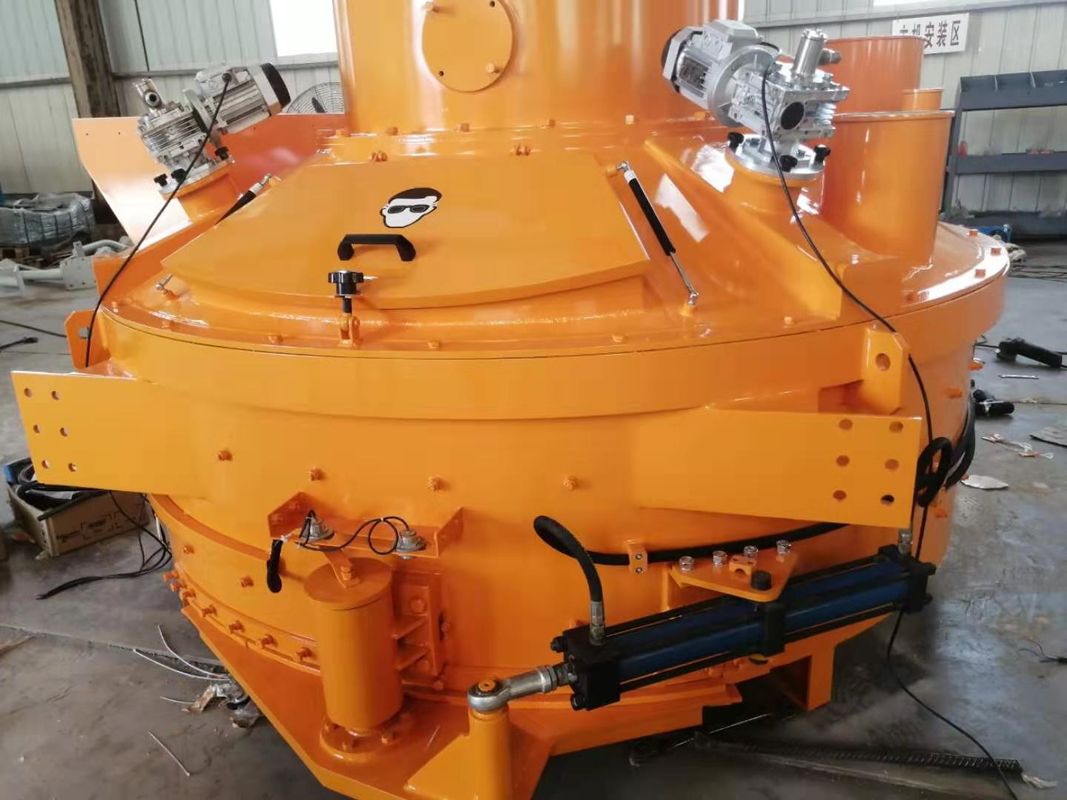

PMC1000 Precast Concrete Planetary Mixer High Homogenization with CE Certificate
Product advantage and description
The concrete mixer is the advanced and ideal model at home and abroad. It has the advantages of high automation, high efficiency, convenient operation,low noise, good mixing quality, low energy consumption, long service life of lining plate and blade, fast discharging speed, convenient maintenance and so on. It is suitable for lightweight aggregate concrete mixing plastic, dry, and mortar.
The pneumatic piston push rod is used to discharge the motor automatically when discharging.Concrete mixer consists of feeding mechanism, water supply system, unloading mechanism, stirring mechanism, electric control system and so on. It can mix aggregate,dry concrete, gravel, plastic concrete,lightweight aggregate concrete and all kinds of mortar.The two horizontal mixing shafts in the mixing drum of the machine are stirred by reverse rotation at the same speed.
Mixer advantages
The product design structure is reasonable, the layout is novel, and it is easy to use and maintain.Users can use dump trucks and mixer trucks for their own use. At the same time, they can also be restructured according to the special requirements of users to meet their needs.The machine has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. It can also provide matching hosts for the mixing station.It is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges.Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants.
The mixing track as follows.
Technical Specification | ||||||||||||||
ITEM/(PMC) |
PMC 50 |
PMC 100 |
PMC 150 |
PMC 250 |
PMC 330 |
PMC 500 |
PMC 750 |
PMC 1000 |
PMC 1250 |
PMC 1500 |
PMC 2000 |
PMC 2500 |
PMC 3000 |
PMC 4000 |
Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 |
Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
Dimension (L*W*H) mm |
950* 790* 1200 |
1664* 1453* 1487 |
1670* 1460* 1620 |
1860* 1650* 1780 |
1870* 1870* 1855 |
2230* 2080* 1880 |
2580* 2340* 2195 |
2891* 2602* 2237 |
3058* 2756* 2395 |
3223* 2902* 2470 |
3625* 3230* 2695 |
3893* 3550* 2875 |
3893* 3550* 3085 |
4594* 4150* 3634 |
