Place of Origin: | JIAOZHOU CHINA |
Brand Name: | PERMIX |
Certification: | CE |
Model Number: | PMC500 |
Minimum Order Quantity: | 1 unit |
---|---|
Price: | Negotiation |
Packaging Details: | Export Standard Package |
Delivery Time: | 15-20 days |
Payment Terms: | L/C, T/T |
Supply Ability: | 5-10 units per month |

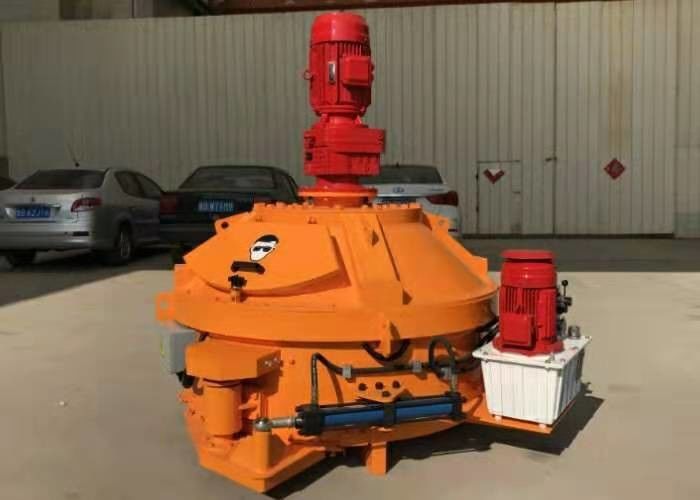

Product Name: | Counter Current Planetary Mixer | Input Capacity: | 750L |
---|---|---|---|
Output Capacity: | 500L | Input Weight: | 1200kgs |
Mixing Power: | 18.5kw | Blade QTY: | 1*2 |
High Light: | refractory mixer machine,refractory castable mixer machine |
1.APPLICATION INDUSTRIES
1. Casting materials: Sand mixing, casting coatings,
2. Ceramics,
3. Pot Clay,
4. Refractories: Unshaped refractories, refractory bricks,
5. Glass Raw Material,
6. Concrete
Precast concrete: various block bricks, track slabs, sleepers, metro tunnel segments, PCCP water pipe,PC components,
Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,
High Performance ready-mixed concrete: Self-leveling mortar, etc.
2. Protection Against Wear
The materials and coatings used to manufacture those components that come into contact with abrasive substances are specially selected for each individual application.
(1) highchrome alloy.
(2) surfacing materials.
(3) polyurethane material.
(4) stainless steel materials.
(5) ceramic materials
(6) wear - resistant alloy plates.
(7) high wear resistant rubber and cast stone materials.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.
The mixing track as follows.
Technical Specification | ||||||||||||||
ITEM/(PMC) |
PMC 50 |
PMC 100 |
PMC 150 |
PMC 250 |
PMC 330 |
PMC 500 |
PMC 750 |
PMC 1000 |
PMC 1250 |
PMC 1500 |
PMC 2000 |
PMC 2500 |
PMC 3000 |
PMC 4000 |
Feeding Capacity (L) | 75 | 150 | 225 | 375 | 500 | 750 | 1125 | 1500 | 1875 | 2250 | 3000 | 3750 | 4500 | 6000 |
Output Capacity (L) | 50 | 100 | 150 | 250 | 330 | 500 | 750 | 1000 | 1250 | 1500 | 2000 | 2500 | 3000 | 4000 |
Feeding Weight (kg) | 120 | 240 | 360 | 600 | 800 | 1200 | 1800 | 2400 | 3000 | 3600 | 4800 | 6000 | 7200 | 9600 |
Mixing Power (kw) | 3 | 5.5 | 7.5 | 11 | 15 | 18.5 | 30 | 37 | 45 | 55 | 75 | 90 | 110 | 132 |
Discharging Power (kw) | Pneumatic Discharge(Hydraulic Discharge Optional) | 3 | 3 | 3 | 4 | 4 | 4 | 4 | ||||||
Mixing Star*Blade | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*2 | 1*3 | 2*2 | 2*2 | 2*2 | 3*2 | 3*3 | 3*3 | 3*3 |
Side Scraper | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 |
Discharge Scraper | - | - | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 1 | 2 | 2 | 2 | 2 |
Weight (kg) | 750 | 1000 | 1300 | 1500 | 2000 | 2400 | 3900 | 5500 | 6000 | 6500 | 9200 | 11000 | 12000 | 17500 |
Lifting Power (kw) | - | - | - | 3 | 4 | 4 | 7.5 | 11 | 11 | 15 | 18.5 | 22 | 30 | - |
Dimension (L*W*H) mm |
950* 790* 1200 |
1664* 1453* 1487 |
1670* 1460* 1620 |
1860* 1650* 1780 |
1870* 1870* 1855 |
2230* 2080* 1880 |
2580* 2340* 2195 |
2891* 2602* 2237 |
3058* 2756* 2395 |
3223* 2902* 2470 |
3625* 3230* 2695 |
3893* 3550* 2875 |
3893* 3550* 3085 |
4594* 4150* 3634 |
