|Place of Origin:||JIAOZHOU CHINA|
|Minimum Order Quantity:||1 unit|
|Packaging Details:||Export Standard Package|
|Delivery Time:||15-20 days|
|Payment Terms:||L/C, T/T|
|Supply Ability:||5-10 units per month|
|Product Name:||Counter Current Planetary Mixer||Input Capacity:||1875L|
|Input Weight:||3000kgs||Mixing Power:||30kw|
|Output Capacity:||1250L||Side Scraper QTY:||1|
refractory mixer machine,
refractory paddle mixer

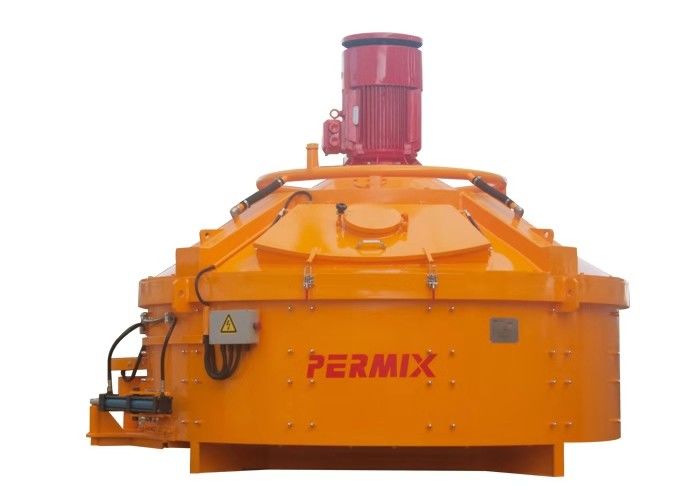

Ceramic Materials Counter Current Mixer No Hidden Corners PMC1250
Precast concrete: metro tunnel segments, various block bricks, sleepers, track slabs, PC components, PCCP water pipe,
Lightweight aggregate concrete: Light soil cement slurry,polyphenylene granule cement slurry, other lightweight aggregate concrete,
High Performance ready-mixed concrete: Self-leveling mortar, etc.
2. Pot Clay,
3. Casting materials: Sand mixing, casting coatings,
4. Glass Raw Material,
6. Refractories: Refractory bricks,Unshaped refractories,
The machine has the dual advantages of independent operation and the simple concrete mixing plant combined with PLD series batching machines. Refractory Planetary Mixer can also provide matching hosts for the mixing station. Refractory Planetary Mixer is suitable for all kinds of large, medium and small prefabricated component plants and highways and bridges. The product design structure is reasonable, the layout is novel, and it is easy to use and maintain.Users can use dump trucks and mixer trucks for their own use. At the same time, they can also be restructured according to the special requirements of users to meet their needs. Water conservancy, docks and other industrial and civil construction projects are ideal for the host of concrete mixing plants.
3. The Skip Hopper
The feeding door automatically opens when feeding, and closes when the hopper begins to descend. Skip hopper can be chosen according to the requirements of customers. The device effectively prevents the dust overflow the trough during the mixing to protect the environment.
Principle of Motion: Mixing with no hidden corners in the mixing pan by installing mixing tools and scraper tools on a specially designed drive system.
The mixing track as follows.
|Feeding Capacity (L)||75||150||225||375||500||750||1125||1500||1875||2250||3000||3750||4500||6000|
|Output Capacity (L)||50||100||150||250||330||500||750||1000||1250||1500||2000||2500||3000||4000|
|Feeding Weight (kg)||120||240||360||600||800||1200||1800||2400||3000||3600||4800||6000||7200||9600|
|Mixing Power (kw)||3||5.5||7.5||11||15||18.5||30||37||45||55||75||90||110||132|
|Discharging Power (kw)||Pneumatic Discharge(Hydraulic Discharge Optional)||3||3||3||4||4||4||4|
|Lifting Power (kw)||-||-||-||3||4||4||7.5||11||11||15||18.5||22||30||-|
|Dimension (L*W*H) mm||950*|
